2117 Multi-Axis Positioning Systems (MAPS)

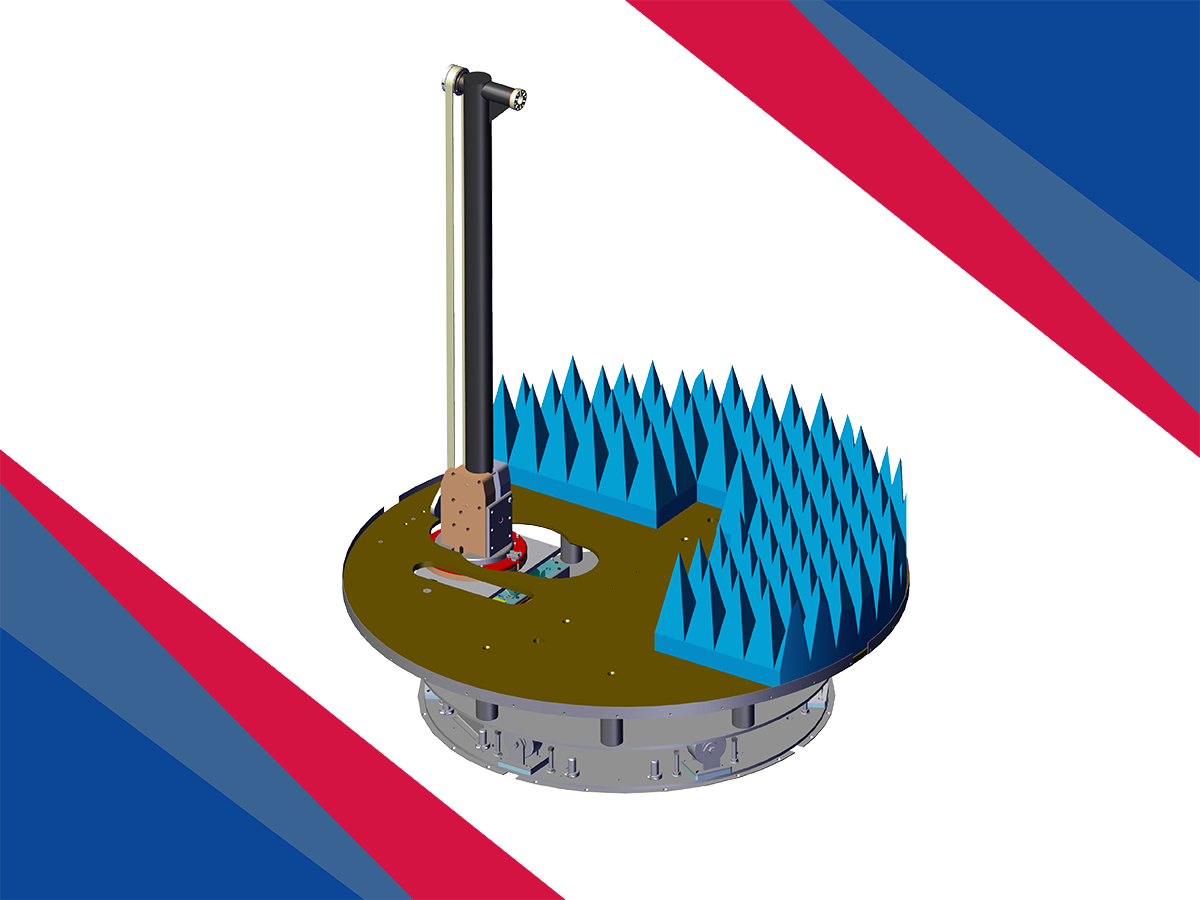

Model 2117 Medium Duty Multi-Axis Positioner (MAPS) is designed to provide smooth, accurate rotation of a test object in both theta and phi axes.

Add to FavoritesRemove from Favorites

Industries: Wireless

Solutions: EMC

Share:

Key details
Resources

Smooth, Accurate Rotation for a Variety of Wireless Testing

Model 2117 Medium Duty Multi-Axis Positioner (MAPS) is designed to provide smooth, accurate rotation of a test object in both theta and phi axes. The 2117 is ideal for applications requiring spherical antenna pattern measurements and Total Radiated Power (TRP)/Total Isotropic Sensitivity (TIS) Testing of Wireless Devices.
The 2117 is currently in use at multiple CTIA Authorized Test Labs (CATLs). Available options include the SAM Phantom (head) and ETS‑Lindgren's Positioning Controller with GPIB interface and EMQuest™ software for seamless integration and automated control.

360 Independent Rotation in Both Theta and Phi Axes,Continuous Rotation in Phi Axis
Angular Positioner Accuracy Better than -0.25 with EUT load centered on rotation axis
Variable Speed Axis Rotation
Conveinence Outlet and Coaxial Rotary Joint Installedat Turntable Center
Suitable for RSE Testing
Testing With/Without SAM Phantom Head (Optional)
EMCenter Positioning Controller (Required)
IEEE-488-2 (GPIB) Compatible
Fiber Optic Control Lines
EMQuest EMQ-100 Integrated Automated Test and Measurement Software (Optional)
