Key Features

  • New Standard Configurations For Faster Delivery

  • Improved Accessibility With New Larger Zero Perimeter Door

  • Easy Open/Close Progressive Latching

  • Large Working Interior

  • Up to 120 dB RF Isolation

  • Custom Configurations Available

  • Zero Perimeter Door

  • General Purpose RF Testing

  • Download PDF Datasheet
  • ETS-Lindgren's 5230 Tabletop RF Test Enclosures are cells for conducting sensitive DUT measurements requiring shielding, such as mobile phones, including R&D, 5G and Bluetooth testing. The Series 5230 enclosures boast a welded construction and include doors with easy open/close progressive RF gasket compression mechanisms, which combined provides RF isolation of up to 120 dB at frequencies above 10 MHz. The large, unobstructed interior and zero perimeter doors maximize the available test volume for larger-sized DUTs.

    The new standard configuration offerings in this series ensure an expedited lead-time, as compared to the custom configured solutions, and all include options for RF anechoic lining (absorber or ferrite tile), RF waveguide vents for cooling, and removable feed through panels for power and signal lines.

    Custom enclosures are also available, with features including frequency specific RF coupling devices (antennas), automated DUT positioning fixtures, interior lighting, and CCTV cameras.

    Specifications
    View the 5230 Tabletop Test Enclosure technical specifications below

    Physical Specifications

    P/NConstructionStandard size*RFHO-60 door opening
    5230-18Welded450 x 450 x 450mm (17.7 x 17.7 x 17.7in)370 x 370mm (14.5 x 14.5in)
    5230-24Welded600 x 600 x 600mm (23.6 x 23.6 x 23.6in)520 x 520mm (20.5 x 20.5in)
    5230-30Welded750 x 750 x 750 mm (29.5 x 29.5 x 29.5in)670 x 670mm (26.4 x 26.4in)
    5230-36Welded

    900 x 900 x 900mm (35.4 x 35.4 x 35.4in)

    820 x 820mm (32.3 x 32.3in)

    With Absorber on All Six Sides

    P/NConstructionStandard size*RFHO-60 door opening
    5230-18-FLWelded450 x 450 x 450mm (17.7 x 17.7 x 17.7in)370 x 370mm (14.5 x 14.5in)
    5230-24-FLWelded600 x 600 x 600mm (23.6 x 23.6 x 23.6in)520 x 520mm (20.5 x 20.5in)
    5230-30-FLWelded750 x 750 x 750 mm (29.5 x 29.5 x 29.5in)670 x 670mm (26.4 x 26.4in)
    5230-36-FLWelded900 x 900 x 900mm (35.4 x 35.4 x 35.4in)820 x 820mm (32.3 x 32.3in)

    Exterior Color (Standard): White RAL9010

    * Custom sizes are available. Contact your local sales representative for more information.

    Electrical Specifications

    Performance:

    Magnetic Field: 44 dB @ 1 KHz; 58 dB @ 10 KHz; 94 dB @ 1 MHz; 120 dB @ 30 MHz

    Electric Field: 120 dB from 1 KHz to 30 MHz

    Plane Wave: 120 dB @ 30 MHz to 1 GHz

    Microwave: 120 dB @ 1 GHz to 10 GHz

    Product Options

    • Custom Sizes Available
    • Electrical Filters for AC and/or DC Inlet
    • Absorber or Ferrite Tile RF Anechoic Lining
    • RF Waveguide Cooling Vents
    • Removable Feed Through Power and Signal Line Panels
    • Viewing Ports
    • Swing, Sliding, or Pneumatic Door Operations Available
    • Available in Various Colors

    Product Configuration

    Standard Panel Options*

    Panel APanel BPanel CPanel D
    200 x 200mm200 x 200mm200 x 200mm200 x 200mm
    2x N2x N2x N2x N
    2x SMA 2x SMA 2x SMA 2x SMA
    1x FTWG 25mm with caps1x FTWG 25mm with caps1x FTWG 25mm with caps1x FTWG 25mm with caps
    1x WGF-61x WGF-61x WGF-61x WGF-6
    1x D-Sub 91x D-Sub 91x D-Sub 91x D-Sub 9
    1x AC power supply1x AC power supply1x AC power supply
    1x USB interface1x USB interface

    1x LAN/Ethernet

    * Custom sizes/configurations are available. Contact your local sales representative for more information.? ? ? ?

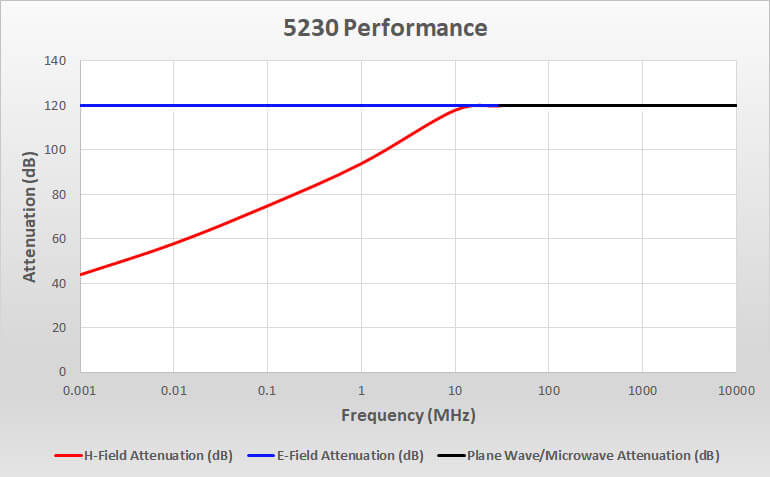

    Charts
    View the 5230 Tabletop Test Enclosure charts below
