MIL-STD 461 Chambers
Product Image
Key Features
  • 10kHz 40GHz RE102 and RE103 frequency range
  • Minimum Chamber Performance:
    • 6dB reflectivity Loss from 80MHz to 250MHz
    • 10dB Reflectivity Loss Above 250MHz
  • Conducted Emissions
  • Conducted Susceptibility
  • Radiated Susceptibility
  • RF Specifications:
    • RE: 30 Hz 40 GHz
    • RS: 30 Hz 40 GHz

ETS-Lindgren's MIL-STD-461 chamber is designed for testing in accordance with Mil-Std 461E, Mil-Std 461F and Mil-Std-461G. The chambers shell is constructed with Series 81 modular cell-type shielding panels. Interior end walls, portions of the sidewalls and ceiling are lined in the manner required by MIL-STD-461, using EMC-24PCL absorber.

Specifications
Physical Specifications
Internal Working Area Length: 4.267 m (14.00 ft)
Internal Working Area Width: 4.267 m (14.00 ft)
Internal Working Area Height: 2.438 m (8.00 ft)
Shield Room Inner Length: 5.486 m (18.00 ft)
Shield Room Inner Width: 5.486 m (18.00 ft)
Shield Room Inner Height: 3.048 m (10.00 ft)
Overall Structure Length: 5.791 m (19.00 ft)
Overall Structure Width: 5.791 m (19.00 ft)
Overall Structure Height: 3.352 m (11.00 ft)
Electrical Specifications
Frequency Minimum: 10 kHz
Frequency Maximum: 40 GHz
Product Options
  • Full EMC Test System Solution
Product Configuration
  • Design and Fabricate Series 81 RF Shielded Enclosure with Interior Shield-to-shield Dimensions 5.49 m L x 5.49 m W x 3.05 m H (18.0 ft x 18.0 ft x 10 ft)
  • One (1) Series 201 Single-leaf, RCM, Manually Operated, RF Shielded Door 1.21 m W x 2.13 m H (4 ft x 7 ft), Door will be Strategically Located in an Area without Absorber, Including Limit Switch to Accommodate Optional Immunity Interlock Switch
  • One (1) Test Bench, 3.51 m L x 0.91 m W x 0.91 m H (11 ft 6 in x 2 ft 11 in x 2 ft 11 in) with Grounding Attachments to Chamber End Wall per MIL-STD-461E/F/G
  • EMC-20PCL Absorber on the Chamber End Walls and partial areas of the Ceiling and Side Walls.
    Options are available for full coverage using hybrid DuraSorb materials. DuraSorb provides enhanced low frequency (<80 MHz) performance for reduced measurement uncertainty.

  • Two UL-listed 2 x 30 Amp, 60 Hz power-line filters; One for Lights, One for Power to EUT (Wiring and Electrical Distribution not included)
  • One Door Maintenance Kit
  • Two (2) Waveguide Vents, 0.31 m x 0.61 m (12 in x 24 in)
  • .15 mm (6 mil) Polyethylene Vapor Barrier
  • 3.0 mm (.125 in) Thick Dielectric Floor Underlay with 3.0 mm (.125 in) Vinyl Floor Tile
  • Guaranteed Performance and a Five-year Limited Warranty; One-year Warranty on Doors, Filters and Moving Parts; Two-year Warranty on Optional ETS-Lindgren's Equipment
  • One (1) Threaded Brass Ground Stud, 1.3 cm Diameter x 12.7 cm Long (.5 in x 5 in)
  • Four (4) Incandescent Corner-mounted Light Fixtures with Incandescent Floodlights (Electrical Distribution not Included)
  • Two (2) Connector Panels, 15.2 cm x 61 cm (6 in x 24 in)
  • Shield Test per MIL-STD-285, One Frequency Test at 1 GHz

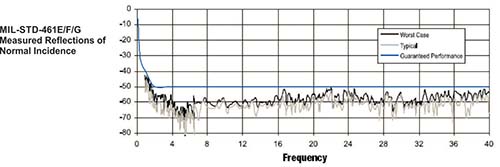

Charts
