Multi-Station Hearing Screening Booths - Single-Wall - ETS-Lindgren
Multi-Station Hearing Screening Booths - Single-Wall
Product Image
Key Features
  • Single Wall Design, Two to Ten Test Stations
  • Master/Station Jack Panel System, Recessed Cabling
  • Sliding Curtain Dividers Between Stations
  • Low profile 12.07 cm (4.75 in) Acoustic and Vibration Isolated Floor System
  • Ceiling-mounted LED Lighting with Switch Adjacent to Door
  • Acoustically Engineered Ventilation System with Variable Speed Fan
  • Double Seal Acoustic Door with Window

ETS-Lindgren's Multi-Station Hearing Screening Booths are soundproof booths capable of testing from two to ten people simultaneously. Multi-station test booths come in five standard models with custom sizes available. These acoustic booths provide impressive isolation utilizing AS-A504 10 cm (4 in) wall construction. For installation convenience, the ventilation silencer can be mounted on either roof or wall depending on space constraints. These acoustic booths can be designed for fixed or mobile configurations.

Specifications
Physical Specifications
Model
Test Positions
Interior
ExteriorWeight
RM-181
2224 cm W x 76 cm L x 198 cm H (7 ft 4 in x 2 ft 6 in x 6 ft 6 in)
244 cm W x 97 cm L x 248 cm H (8 ft x 3 ft 2 in x 8 ft 1 5/8 in)
1,338 kg (2,950 lb)
RM-182
4
224 cm W x 152 cm L x 198 cm H (7 ft 4 in x 5 ft x 6 ft 6 in)
244 cm W x 173 cm L x 248 cm H (8 ft x 5 in 8 in x 8 ft 1 5/8 in)
1,706 kg (3,760 lb)
RM-183
6
224 cm W x 229 cm L x 198 cm H (7 ft 4 in x 7 ft 6 in x 6 ft 6 in)
244 cm W x 249 cm L x 248 cm H (8 ft x 8 ft 2 in x 8 ft 1 5/8 in)
2,105 kg (4,640 lb)
RM-184
8
224 cm W x 305 cm L x 198 cm H (7 ft 4 in x 10 ft x 6 ft 6 in)
244 cm W x 325 cm L x 248 cm H (8 ft x 10 ft 8 in x 8 ft 1 5/8 in)
2,867 kg (6,320 lb)
RM-185
10
224 cm W x 381 cm L x 198 cm H (7 ft 4 in x 12 ft 6 in x 6 ft 6 in)
244 cm W x 401 cm L x 248 cm H (8 ft x 13 ft 2 in x 8 ft 1 5/8 in)
3,139 kg (6,920 lb)
NOTE: Exterior height includes roof mounted ventilation system. Other options are available if host space cannot accommodate overall height. Please allow a minimum of 10 cm (4 in) clearance between booth and host walls.

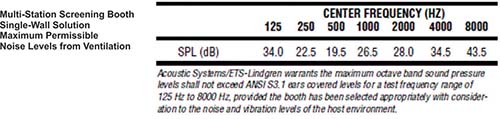

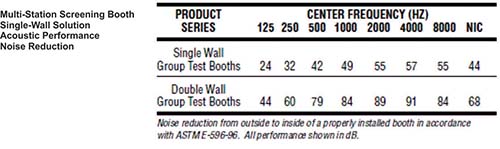

Charts
