Single-Wall Exam Booths
Product Image
Key Features
  • Single Wall Design Acoustic Booth
  • Pre-wired Acoustically sealed cable jack panel
  • Low Profile 12.07 cm (4.75 in) Acoustic and Vibration Isolated Floor System
  • Ceiling Mounted LED Lighting
  • Acoustically Engineered Ventilation System with Variable Speed Fan
  • SoundSecure Patient Observation Window
  • Option Window in the Door
  • Carpeting with Cove Base Trim
  • Hospital Grade Recessed Electrical Devices

ETS-Lindgren's Single Wall Audiometric Exam Booths are constructed with our standard AS-A504 10 cm (4) thick wall panels and provide impressive, laboratory verified sound isolation. For installation convenience, the ventilation silencer can be mounted on either roof or wall depending on space constraints.

Single wall audiometric exam booths offer the choice of either a standard model package or a built-to-order design to meet special requirements. Please contact ETS-Lindgren for further information on any of our audiology solutions or specific product availability.

Specifications
Physical Specifications

Model
Interior DimensionsExterior DimensionsWeight
RE-142
192 cm W x 183 cm L x 198 cm H (6 ft 4 in x 6 ft 0 in x 6 ft 6 in)
213 cm W x 203 cm L x 248 cm H (7 ft 0 in x 6 ft 8 in x 8 ft 1 5/8 in)
1,760 kg (3,850 lb)
RE-143
224 cm W x 213 cm L x 198 cm H (7 ft 4 in x 7 ft 0 in x 6 ft 6 in)
244 cm W x 234 cm L x 248 cm H (8 ft 0 in x 7 ft 8 in x 8 ft 1 5/8 in)
2,109 kg (4,650 lb)
RE-144
274 cm W x 254 cm L x 198 cm H (90 x 84 x 66)
295 cm W x 274 cm L x 248 cm H (9 ft 8 in x 9 ft 0 in x 8 ft 1 5/8 in)
2,740 kg (6,040 lb)
RE-145
305 cm W x 284 cm L x 198 cm H (10 ft 0 in x 9 ft 4 in x 6 ft 6 in)
325 cm W x 305 cm L x 248 cm H (10 ft 8 in x 10 ft 0 in x 8 ft 1 5/8 in)
3,071 kg (6,770 lb)
RE-146
193 cm W x 122 cm L x 198 cm H (6 ft 4 in x 4 ft 0 in x 6 ft 6 in)
213 cm W x 142 cm L x 248 cm H (7 ft 0 in x 4 ft 8 in x 8 ft 1 5/8 in)
1,383 kg (3,050 lb)
RE-147
244 cm W x 157 cm L x 198 cm H (8 ft 0 in x 5 ft 2 in x 6 ft 6 in)
264 cm W x 178 cm L x 248 cm H (8 ft 8 in x 5 ft 10 in x 8 ft 1 5/8 in)
1,633 kg (3,600 lb)
RE-148
305 cm W x 244 cm L x 198 cm H (10 ft 0 in x 8 ft 0 in x 6 ft 6 in)
325 cm W x 264 cm L x 248 cm H (10 ft 8 in x 8 ft 8 in x 8 ft 1 5/8 in)
2,767 kg (6,100 lb)

NOTE: Exterior height includes roof mounted ventilation system. Other options are available if host space cannot accommodate overall height. Please allow a minimum clear ceiling height of 274 cm (9 ft) for installation.

Electrical Specifications

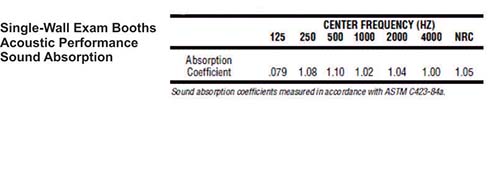

Charts
