3164-11 Open Boundary Quad-ridged Horn - ETS-Lindgren
3164-11 Open Boundary Quad-ridged Horn
Product Image
Key Features
  • 1 GHz to 18 GHz Frequency Range
  • Flat Gain For Upper 80% of Range
  • Dual Linearly Polarized Compact Design
  • Flexible Mounting Schemes
    • Flange for Wall Mounting
    • Bracket for Tripod Mounting

ETS-Lindgren's Model 3164-11 Open Boundary Quad-ridged Horn is the latest in a series of quad-ridged horns from ETS-Lindgren. The open boundary design with its absence of side plates makes this antenna unique in both appearance and performance. Numerically modeled, the Model 3164-11 is a super open boundary quad-ridged horn where the feed cavity is not enclosed. This gives wider frequency range and reduces the weight of the horn.

Product Features

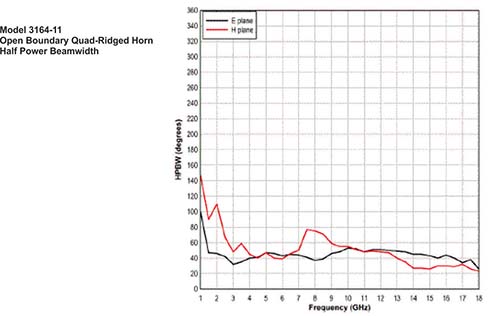

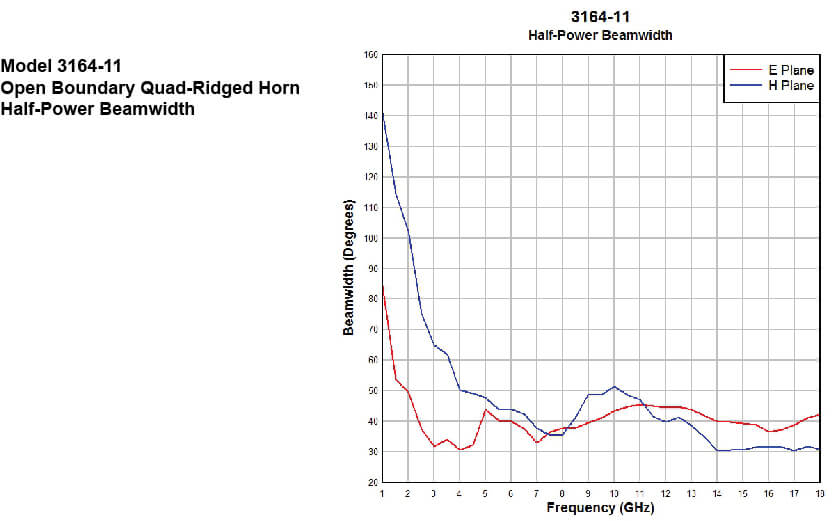

Frequency Range

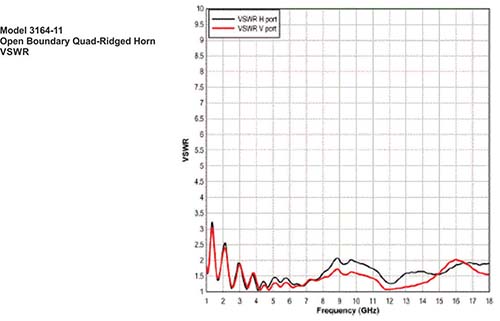

The 3164-11 antenna has a range that covers 1 GHz to 18 GHz, making it ideal for antenna measurement applications and as an EMC antenna for measuring emissions above 1 GHz.

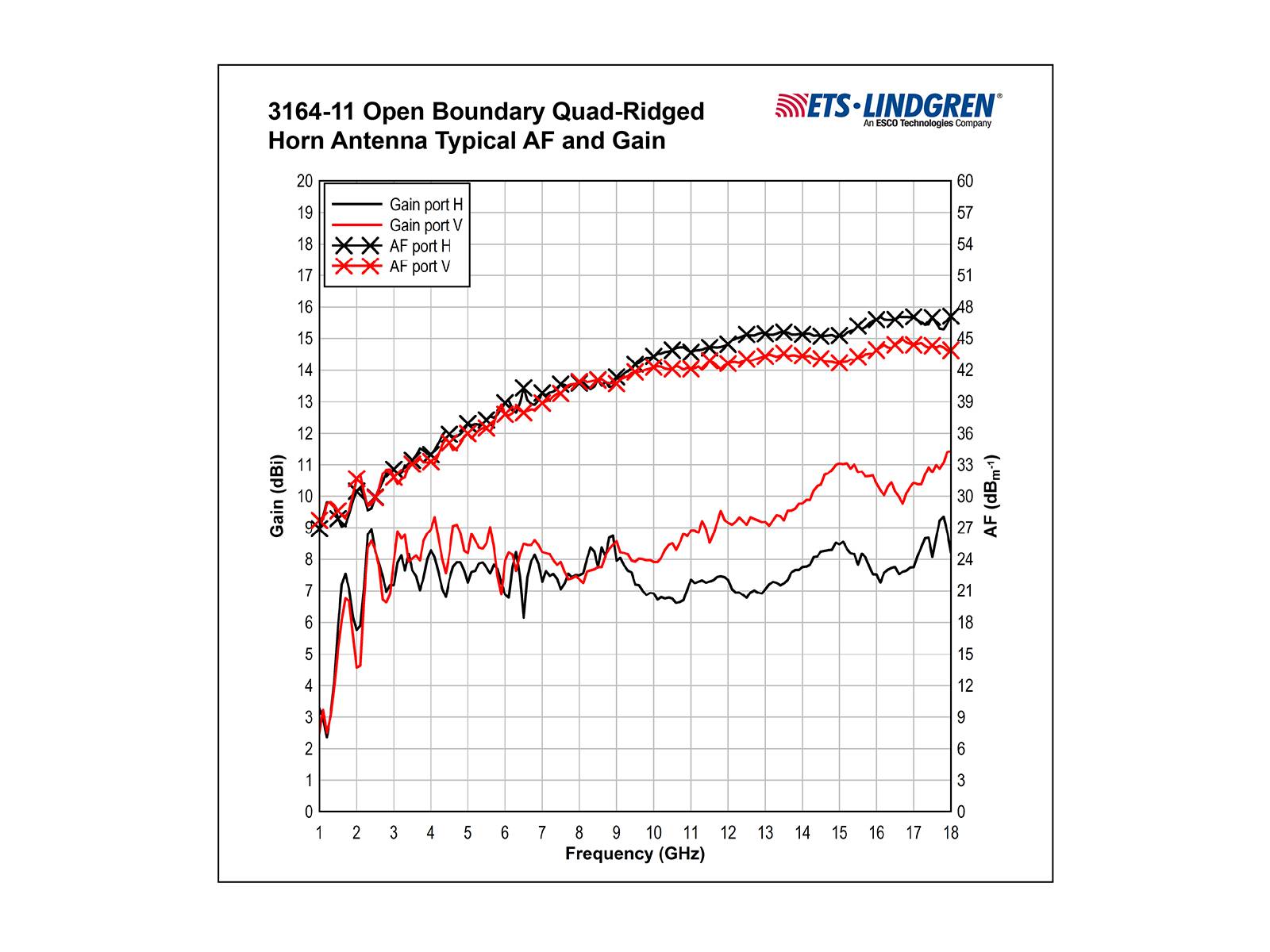

Flat Gain

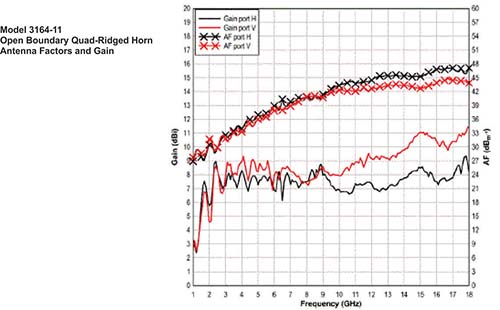

Like other open boundary quad-ridged horns, the 3164-11 exhibits a very flat gain as it changes less than 2 dB for over 80% of the upper part of the frequency range.

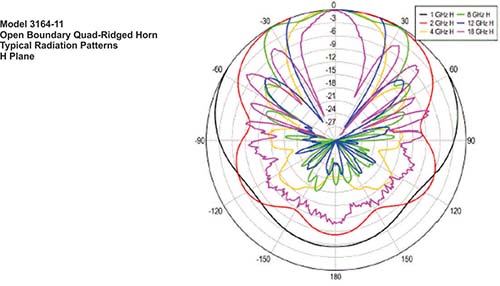

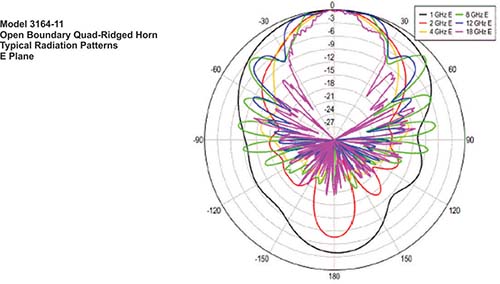

Dual Linear Polarization

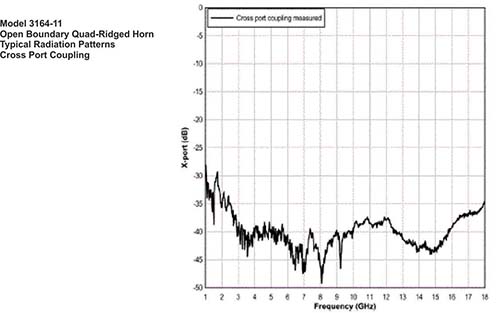

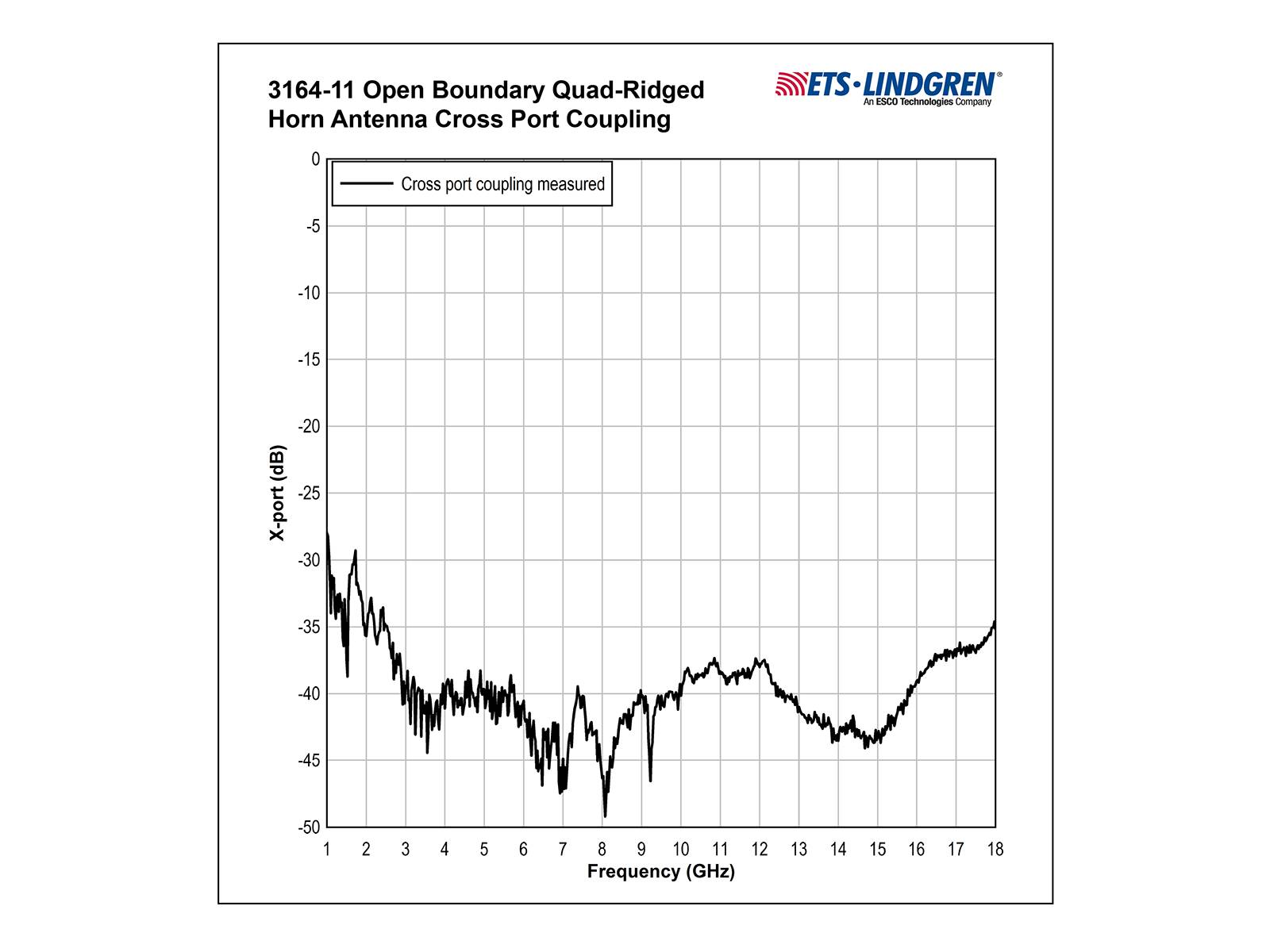

The 3164-11 is a dual linearly polarized horn. Two orthogonally located input ports feed two set of ridge structures, these allows the horn to measure two orthogonal fields simultaneously without the need for physically rotating the horn. The isolation between the ports is better than 25 dB across the frequency range.

Compact Design

This antenna has a smaller, lighter design in relation to other single polarized ridged horns, while exhibiting equivalent performance with the added bonus of dual polarization.

Physical Specifications
Length: 19.0 cm + 8.7 cm Mounting Bracket (7.5 in + 3.4 in Mounting Bracket)
Width 17.6 cm (6.93 in)
Height 17.6 cm (6.93 in)
Weight 1.0 kg (2.20 lb)

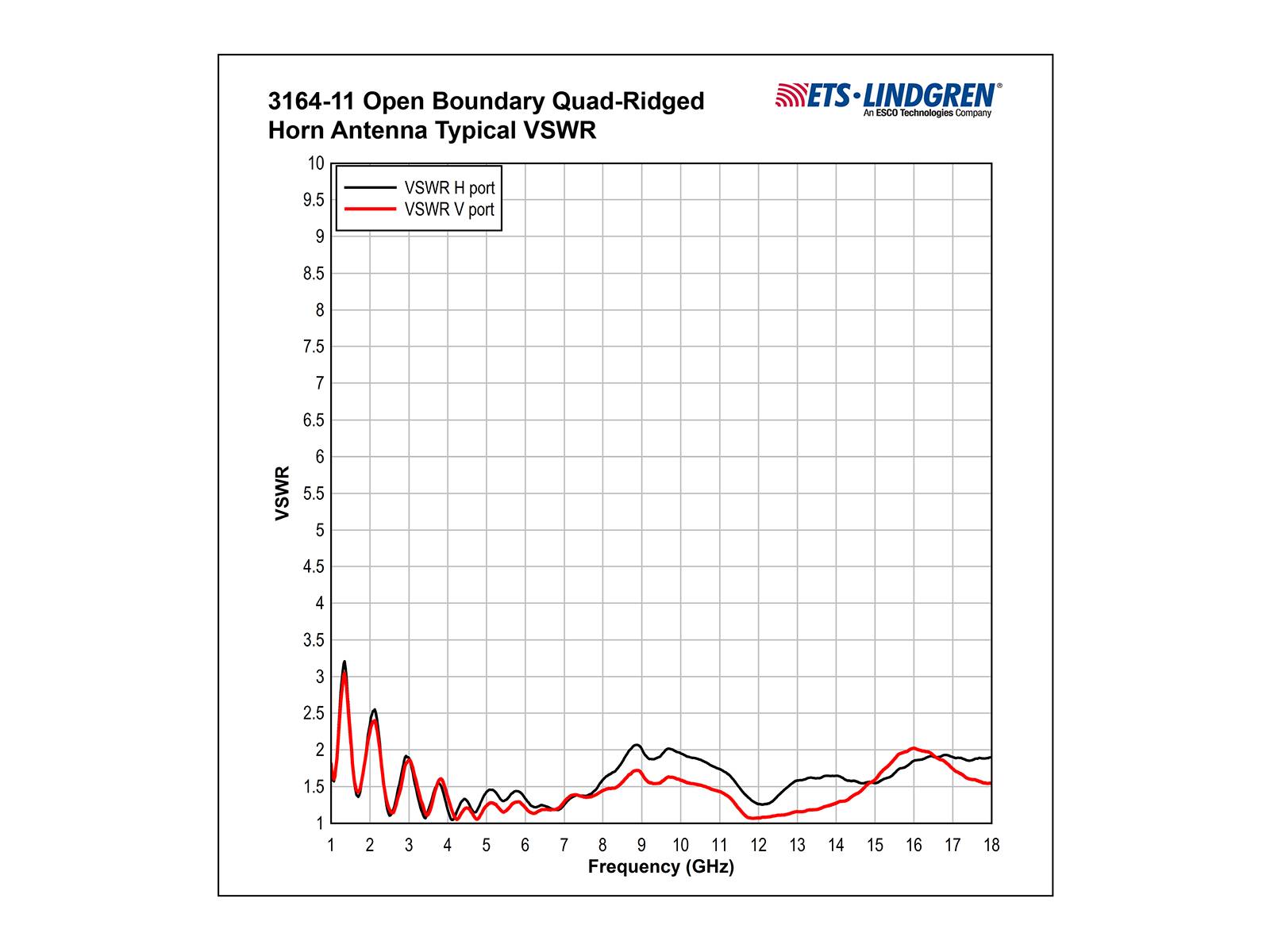

Electrical Specifications
Frequency Minimum: 1 GHz
Frequency Maximum: 18 GHz
VSWR: 3:25:1 (Maximum) <2:1 (Average)
Maximum Continuous Power: 20W
Peak Power: 40W
Impedance (Nominal): 50
Connector: SMA (Female)
Polarization: Dual Linear
Pattern Type: Directional
Product Options
  • Custom Carrying Case
Product Configuration
  • Antenna Assembly
  • Mounting Fixture for x 20 Thread
  • Individually calibrated per ANSI C63.5
  • Manual
