3164-08 Open Boundary Quad-Ridged Horn
Product Image
Key Features
  • 700 MHz to 10 GHz Frequency Range
  • Linear or Circular Polarization (With Hybrid)

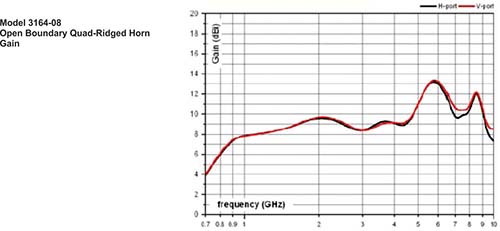

  • Low VSWR with Improved Gain
  • Compact Design
  • Flexible Mounting Schemes
    • Standard Tripod Mounting Flange
    • Optional Wall Mounting Plate

ETS-Lindgren's 3164-08 Open Boundary Quad-Ridged Horn's open boundary design makes this antenna unique in both appearance and performance. Because of excellent gain and improved VSWR, the 3164-08 replaces former models 3164-04 and 3164-07.

Product Features

Open Boundary Design

Numerically modeled, the model 3164s open boundary design is similar to two double-ridged waveguide antennas placed orthogonally to each other.

Ideal for Lower Frequency Testing

The model 3164-08 is ideal for applications including UWB wireless testing (3 GHz to 10 GHz) and lower frequency testing (700 MHz to 3 GHz) for GSM, PCS, Wi-Fi, etc. applications. The 3164-08s compact design makes it ideal for use as both a tripod mounted or wall mounted antenna.

Modular Mounting

Should a wall mount be desired, an optional wall mounting plate can be ordered, and helps to maintain shielding integrity in the chamber.

Specifications
Physical Specifications
Height: 36.07 cm (14.20 in)
Depth: 36.58 cm (14.40 in)
Width: 36.07 cm (14.20 in)
Weight: 5.1 kg (11.24 lb)
Electrical Specifications
Frequency Minimum: 700 MHz
Frequency Maximum: 10 GHz

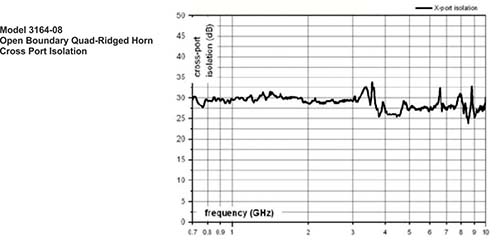

Cross Polarization Isolation: >20 dB
Impedance: 50
Input Power: 300 W at 700 MHz; 100 W at 10 GHz

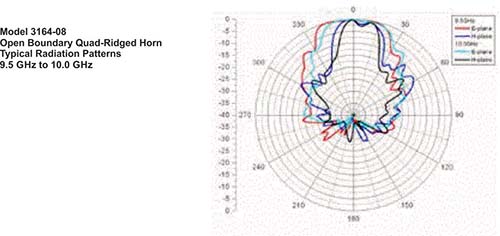

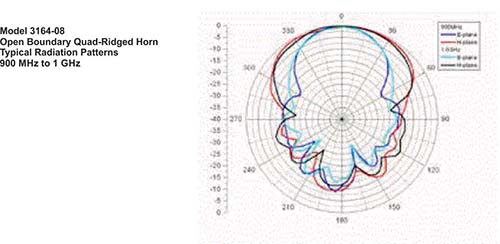

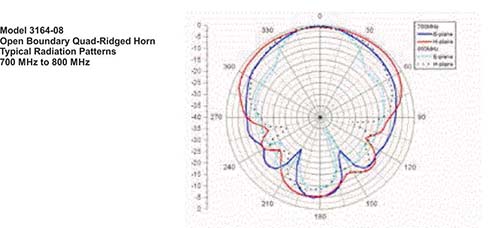

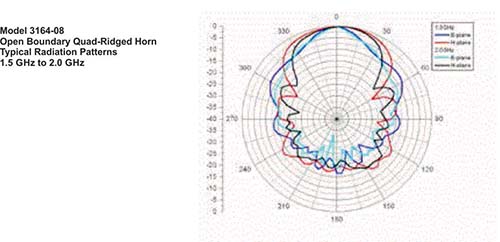

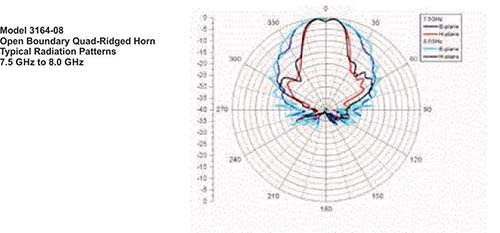

Pattern Type: Directional
Polarization: Dual Linear
Product Options
  • Custom Cases
Product Configuration
  • Antenna Including Mounting Flange
  • Individually calibrated per ANSI C63.5
  • Actual individual calibration factors and signed Certificate of Calibration Conformance
  • Manual
Charts
