Key Features

  • 20 MHz to 220 MHz Frequency Range
  • High Power Feed Handles up to 5 kW RF Input Power
  • Space Saving Design Features Tophat-loaded, Low-frequency Elements
  • Mounted on Wheeled Base for Easy Mobility
  • Download PDF Datasheet
  • ETS-Lindgren's Model 3151 Log-Periodic Dipole Array (LPDA) Antenna features a convenient space saving design with the use of top hat-loaded, low-frequency elements. The reduced-sized design of this log antenna has optimized impedance loading to simulate the moderate gain of a full-size LPDA. Without size reduction, the longest dipole element length would be approximately 7.5 m (24.6 ft). Instead, this antennas entire width is only 3.5 m (11.5 ft).

    To enhance measurement repeatability, the model 3151s longest elements are supported with nylon straps to ensure consistent element positioning. The 3151 antenna features a specially-designed feed to handle high power requirements of up to 5 kW for generating high electric field strength. A hairpin matching stub is used to improve the low-frequency VSWR, which minimizes mismatch loss between the amplifier and antenna.

    The antenna is constructed of lightweight, corrosion-resistant aluminum, providing years of trouble-free service. All elements are attached with knurled knobs for easy assembly. The included wheeled pedestal permits horizontal and vertical antenna polarization, and tilt-angle adjustments. A pneumatic cylinder is used to change polarization, and can be remotely controlled using an optional ETS-Lindgren controller.

    Product Features
    View the 3151 Log-Periodic Dipole Arrayproduct features below

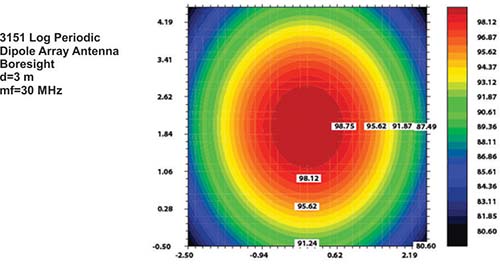

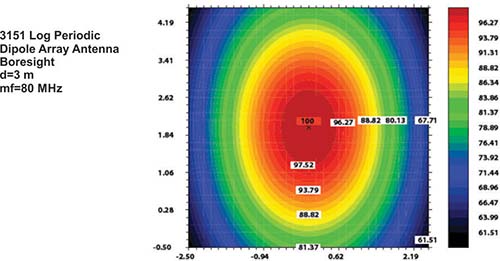

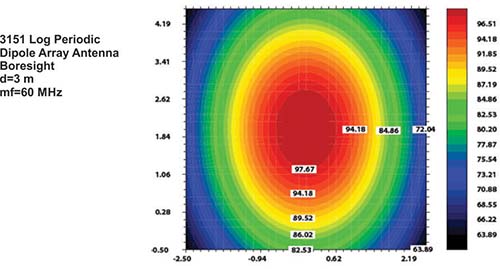

    Electric Field Distribution

    The model 3151 is used for both horizontal and vertical polarizations. The phase center /source position of the antenna shifts from the rear to the front end of the boom as frequency increases. To ensure a high field strength at the low frequency range (30 MHz to 45 MHz), the LPDA antenna needs to be placed at a close distance. However, the beam width of the antenna gets narrower at higher frequencies. Therefore, the antenna needs to be placed at a farther distance at higher frequencies to cover a larger uniform area. If the same distance is kept for the high and low frequency ranges, the field uniformity is compromised above 80 MHz.

    View the 3151 Log-Periodic Dipole Array technical specifications below

    Electrical Specifications

    Frequency Maximum: 220 MHz
    Frequency Minimum: 20 MHz
    Pattern Type: Directional
    Polarization: Linear

    Product Configuration

    • Tophat-loaded LPDA Antenna with 1 5/8" EIA Connector
    • Mounting Bracket
    • Air Polarization Control Assembly
    • Standard Fixed Height Pedestal Positioner with Air Polarization and Manually Adjusted Tilt

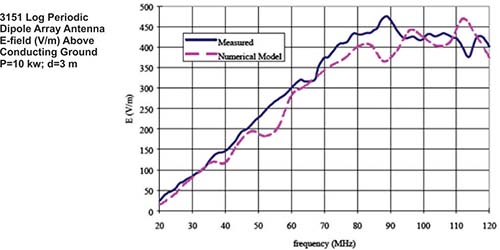

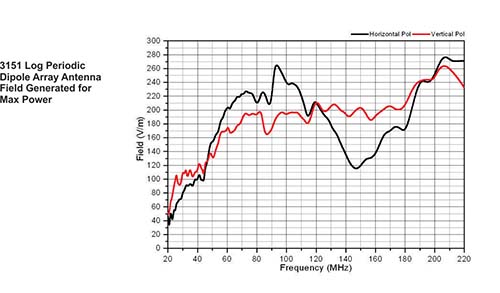

    View the 3151 Log-Periodic Dipole Array charts below
