8100-025 RF Power Amplifier

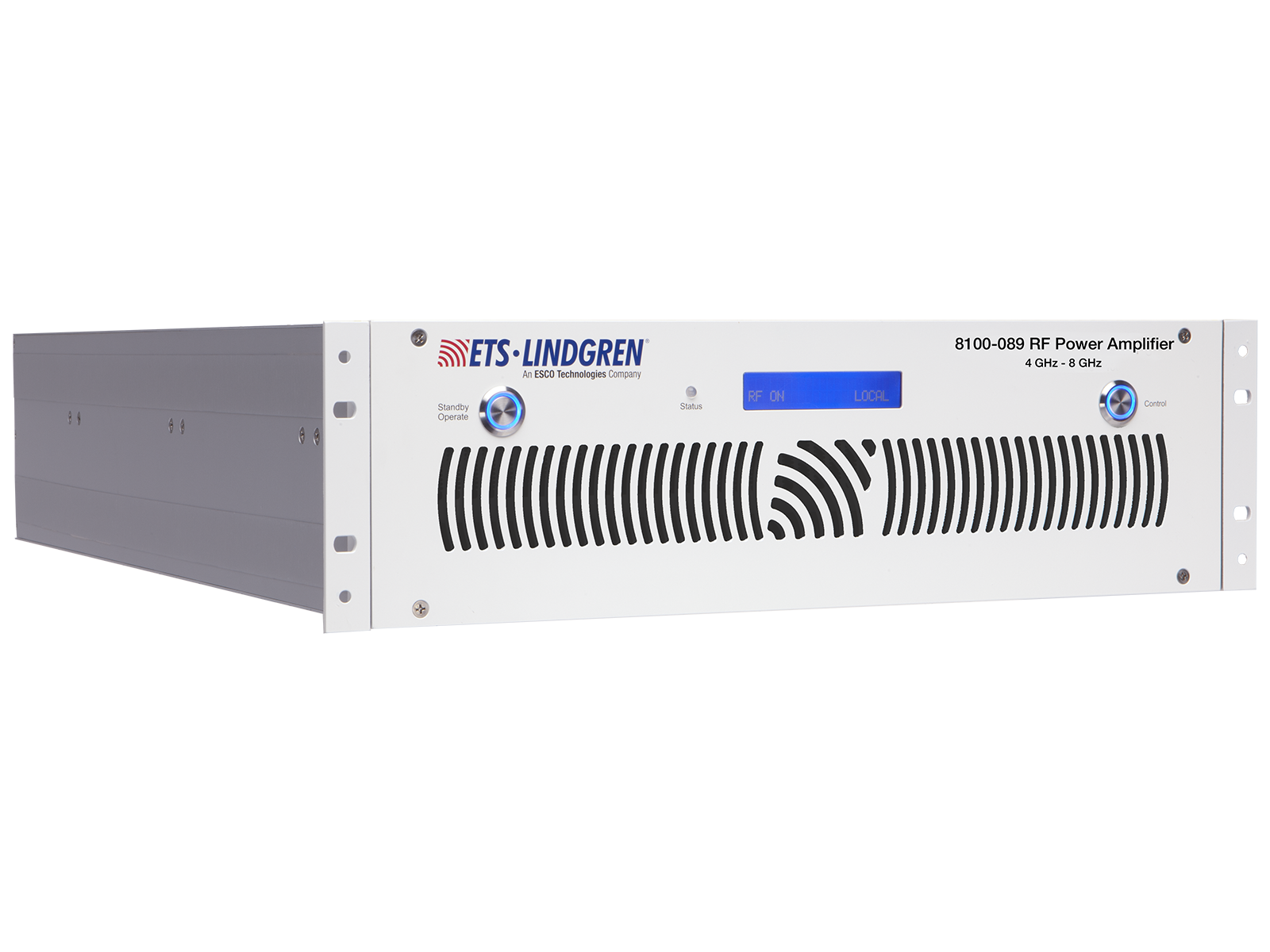

Product Image
Key Features
  • IEC/EN 61000-4-3, 3 V/m
  • High Reliability
  • Excellent Performance and Efficiency
  • Safety Interlock

ETS-Lindgren's Model 8100-025 RF Power Amplifier is a 100W solid state power amplifier, designed primarily for EMC applications that include IEC/EN 61000-4-3, <10 V/m requirements.

Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

The 8100-025 provides very low distortion and tolerance for 100% mismatch.

Physical Specifications

Dimensions: 19 in, 3U Case, 630 mm (24.8 in) Deep

Weight: 23.0 kg (50 lbs)
Case Style (Standard): Rack Mount with Rear Panel Connectors
Case Style (Optional): Bench Mount with Front Panel Connectors
Electrical Specifications

Electrical Frequency Range: 9 kHz to 1 GHz

Nominal Output Power: 100W
Gain Variation: 2 dB
Harmonics: -20 dBc Maximum
Output Impedance: 50
Input VSWR: 2:1 Maximum
AC Supply: 100 to 240 VAC Single Phase
Supply Frequency Range: 50/60 Hz
Line Power: <500 VA
Remote Interface: GPIB, LAN
RF Connectors: Type N-f
