8000-063 RF Power Amplifier
Product Image
Key Features

  • IEC/EN 61000-4-3, for > 10 V/m
  • High Reliability
  • GaN Design
  • Excellent Performance
  • Efficiency Safety Interlock

ETS-Lindgrens Model 8000-063 RF Power Amplifier is a 200 W power amplifier, designed primarily for EMC applications that include IEC/EN 61000-4-3, up to and greater than 10 V/m requirements. Utilizing GaN technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers. The 8000-063 provides very low distortion and tolerance for 100% mismatch.

Physical Specifications

Dimensions: 19 in, 9U Case, 660 mm (23.6 in) Deep
Weight: 40.0 kg (88 lb)
Case Style (Standard): Rack Mount with Rear Panel Connectors
Case Style (Optional): Bench Mount, Front Panel Connector

Electrical Specifications
Frequency Range: 1 GHz to 6 GHz

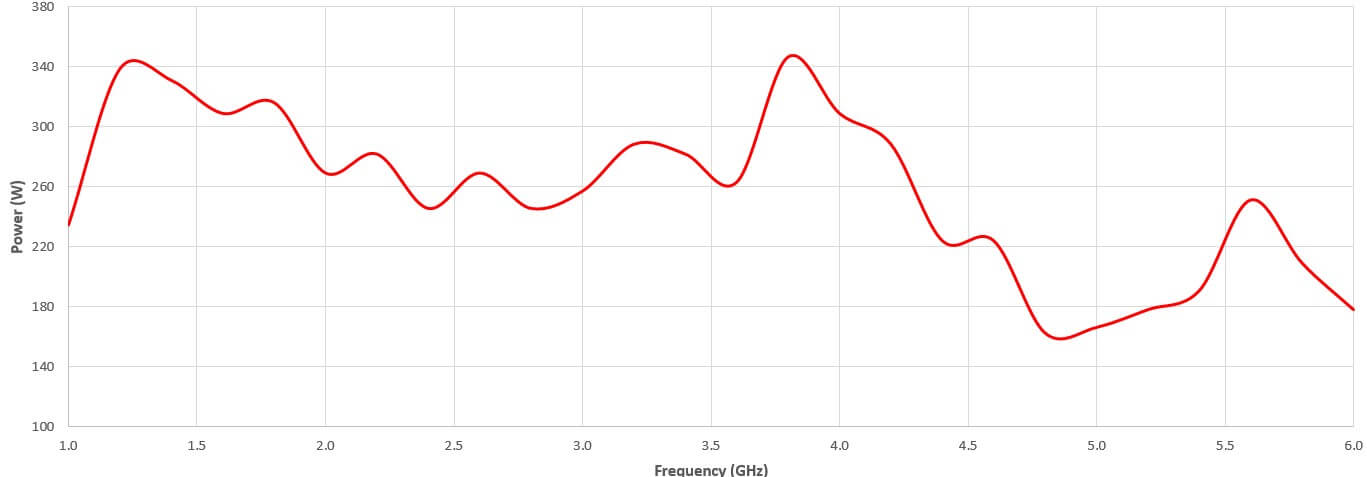

Nominal Output Power: 200 W
Gain Variation: 3 dB
Harmonics: -20 dBc Maximum
Output Impedance: 50
Input VSWR: 2:1 Maximum
AC Supply: 100 to 240 VAC, Single Phase
Supply Frequency Range: 50/60 Hz
Line Power: < 3 kVA
Remote Interface: GPIB, LAN, USB
RF Connectors: Type N(f)
Sample Ports: Type N(f)
