Key Features

  • 30 MHz to 1000 MHz
  • Precision Machined Tiles
  • Easy to Install and Remove
  • Applications: ANSI C63.4CISPR16-1-4IEC61000-4-3
  • Download PDF Datasheet
  • ETS-Lindgren's FT-1500 and FT-1500C combine precision machined ferrite tile with a tuned dielectric backing layer to create a high performance, ultra thin absorber. Each of the six surfaces of every tile is machined to a tolerance of 0.13 mm.

    These precise dimensional tolerances allow for smooth tile-to-tile alignment, reducing the occurrence of gaps that can degrade performance. Both FT-1500 and FT-1500C are supplied as rigid 600 mm x 600 mm (23.62 in x 23.62 in) panels.

    FT-1500 is suitable for mounting on walls and ceilings, and is attached with screws or other mechanical fasteners. FT-1500C is a variation of FT-1500 that adds a special commercial grade carpet over the surface of the tile. The floor panels can be easily assembled, reconfigured, and removed as needed.

    Product Features
    View the FT-1500 Ferrite Tile Absorberproduct features below

    Multiple Application

    FT-1500 and 1500C offer broadband absorber performance in a thin profile. They perform well as either wall or floor absorber treatments in test chambers for a variety of test standards.

    Precision Machined Tiles

    Gaps between tiles are minimized with precise machining of each of the six sides of every ferrite tile. The result is improved performance when compared with non-precision machined tiles.

    Easy to Install and Remove

    The modular panel construction means panels can easily be assembled, reconfigured, or removed as needed.ApplicationsANSI C63.4CISPR 16-1-4IEC 61000-4-3

    Specifications
    View the FT-1500 Ferrite Tile Absorber technical specifications below

    Physical Specifications

    Size: 600 mm x 600 mm (23.62 in x 23.62 in)
    Nominal Height: 25.0 mm (0.98 in)
    Weight Per Panel: 15.9 kg (35.0 lb)

    Electrical Specifications

    Frequency Minimum: 30 MHz
    Frequency Maximum: 1000 MHz
    Power Handling: 1.4 W/in2, 0.26 W/cm2 (1000 V/m CW)

    Product Configuration

    Frequency Minimum: 30 MHz
    Frequency Maximum: 1000 MHz
    Power Handling: 1.4 W/in2, 0.26 W/cm2 (1000 V/m CW)

    Charts

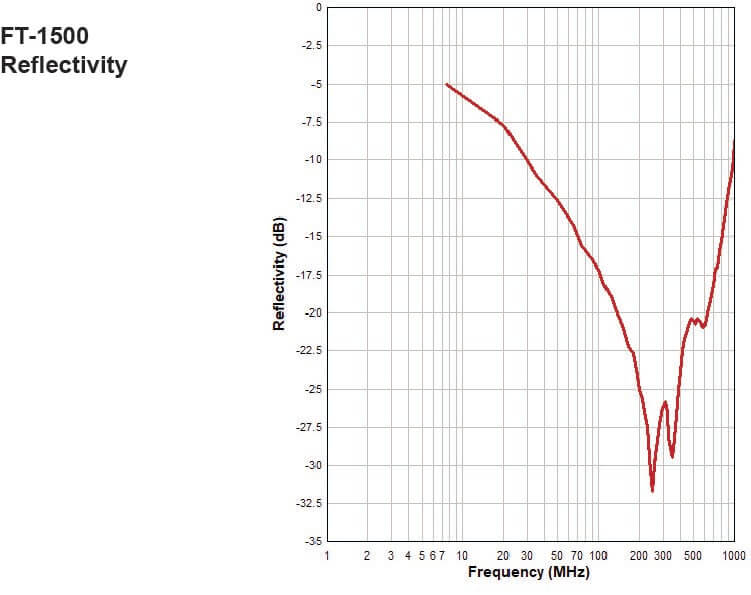

    View the FT-1500 Ferrite Tile Absorber charts below
