IMQ Advanced EMC Testing Chamber

When IMQ S.p.A. (a European leader in Testing, Conformity Assessment, and Certification) decided to expand their EMC test capabilities at their division located in Bollate, Italy, their goal was to have a versatile test chamber in order to meet the growing demands of their diverse customer base. IMQ’s customers include well-known companies in the commercial, industrial, residential, and automotive industries. The priority with a new EMC test facility was to provide high-quality test services for a wide range of products, from small consumer electronics to large full vehicles, with an equipment under test (EUT) size up to 5 m (16 ft). Since ETS‑Lindgren had designed and installed EMC test chambers for IMQ at other locations within Italy, IMQ management knew they could count on ETS‑Lindgren to meet their long range goals. ETS‑Lindgren once again utilized advance chamber modeling capabilities to meet and exceed the specific space and performance requirements of the Bollate, Italy facility. In addition, ETS‑Lindgren offered extremely flexible and instrument-agnostic EMC testing software, including VisionTRX™ and TILE!™. As both the chamber manufacturer and system integrator, ETS‑Lindgren provided a turnkey solution including an RF shielded semi-anechoic chamber, control and amplifier rooms, as well as an instrumentation system, software, accessories, qualification, and onsite training. The completion of the 10-meter EMC test chamber added to the list of successful projects resulting from the partnership of ETS‑Lindgren and IMQ.

Chamber Overview

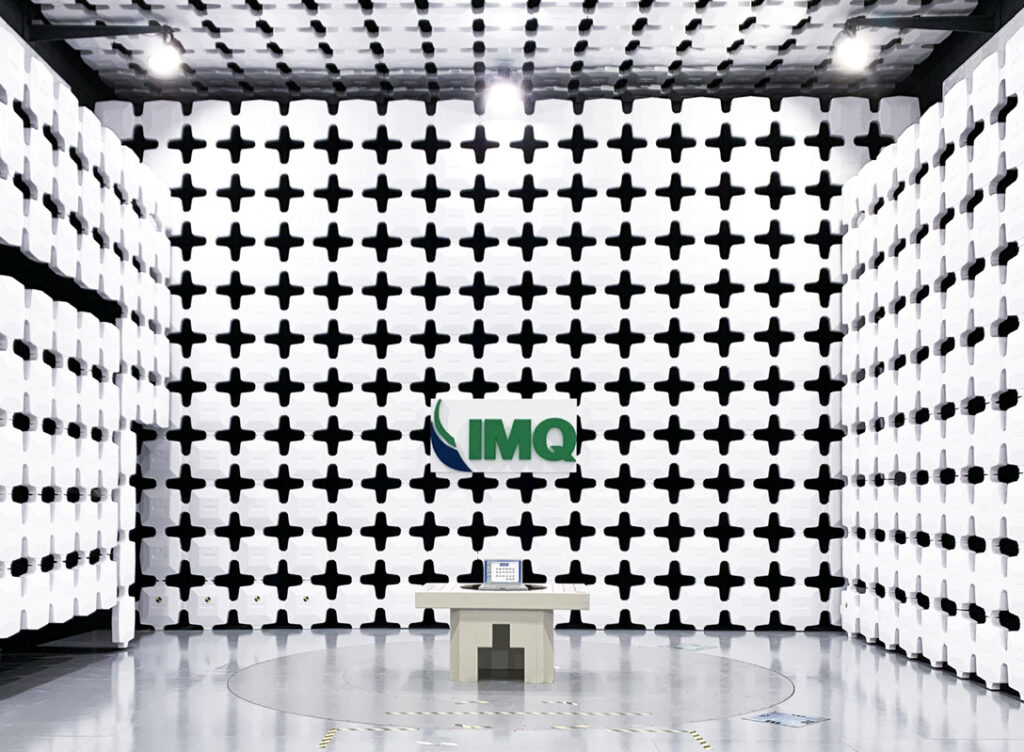

ETS‑Lindgren designed and manufactured a FACT™ (Freespace Anechoic Chamber Testsite) 10 Test Chamber with auxiliary combined amplifier and control rooms. Asea Sistemi, ETS‑Lindgren’s valued partner in Italy, installed the chambers. FACT 10 Chambers offer the semi-anechoic radiated emissions
(RE) and fully anechoic radiated immunity (RI) compliance test capability required by many international EMC compliance regulations.

Key Features:

• FACT 10 Chamber with nominal internal shield-to-shield dimensions of 20.5 m L x 10.6 m W x 8.4 m H (67 ft L x 36 ft W x 29 ft H) – prior to absorber installation.
• Control Room with external shield-to-shield dimensions of 6 m L x 3.5 m W x 2.9 m H (20 ft L x 12 ft W x 10 ft H).
• Amplifier Room with external shield-to-shield dimensions of 2 m L x 3.5 m W x 2.9 m H (7 ft L x 12 ft W x 10 ft H).
• Constructed of Series S101 RF shielded enclosure “pan” type panels with a single layer of 2 mm (.07 in) galvanized steel. Panels are bolted together with superior gasket to ensure high RF conductivity – no welding is required. Series S101 offers the highest shielding attenuation available on the market when combined with the RFD-100 series doors provided.
• The FACT 10 RF shielding system contains no wood components that could be adversely affected by variations in temperature or moisture in an uncontrolled environment. The panels maintain electrical
  continuity and are resistant to corrosion.

Automated Test Software

In order to automate and expedite testing for IMQ’s commercial as well as automotive test applications, ETS‑Lindgren provided VisionTRX™ Visual Monitoring System software. The software redefines automated movement based analysis of EUT during EMC testing.

Key Features:

• In order to verify EUT behavior, the software allows automated visual monitoring of relevant parameters during exposure to the required electromagnetic field strengths.
• EUT may include speedometer needles, dash lights, LEDs, radios, heads up displays, etc.
• Flexible software enables testing for IMQ’s varied commercial and automotive test requirements.

Performance

IMQ’s EMC Test Chamber provides NSA and sVSWR performance exceeding basic expectations at ±3.0 dB NSA from 30 MHz to 1 GHz and sVSWR ≤ 4.5 dB from 1 GHz to 18 GHz. Testing is offered in accordance
with the requirements specified in Automotive, Commercial, Industrial, Military, and Aerospace Standards such as MIL-STD-461F, MIL-STD-464C, RTCA-DO-160G, CISPR 16, CISPR 25, ANSI C63.4 and IEC 61000-4-3.
