RF Power Amplifier Model 8000-073
Product Image

ETS-Lindgrens Model 8000-073 RF Power Amplifier is a 130W power amplifier, designed primarily for automotive and military applications that include Ford CS-2009.1 and GMW 3097 Radar Pulse requirements.

Key Features

  • Ford CS-2009.1 and GMW 3097 Radar Pulse
  • 300 V/m
  • Designed for Automotive Testing
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock


ETS-Lindgrens Model 8000-073 RF Power Amplifier is a 130W power amplifier, designed primarily for automotive and military applications that include Ford CS-2009.1 and GMW 3097 Radar Pulse requirements. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon based amplifiers.

The 8000-073 provides very low distortion and tolerance for 100% mismatch.


Specifications
View the RF Power Amplifier Model 8000-073 technical specifications below

Physical Specifications

Dimensions 19 in, 4U Case, 600 mm (23.6 in) Deep

Weight 20.0 kg (44 lb)

Connectors N(f)

Rear Panel Connectors (Front panel option available)


Electrical Specifications

Frequency Range: 700 MHz to 4.2 GHz
Nominal Output Power: 130 W
Gain Variation: 3 dB
Harmonics: -20 dBc Maximum
Output Impedance: 50
Input VSWR: 2:1 Maximum
AC Supply: L100-240 VAC (+/- 10%)
Supply Frequency Range: 50/60 Hz
Line Power: < 2 kVA

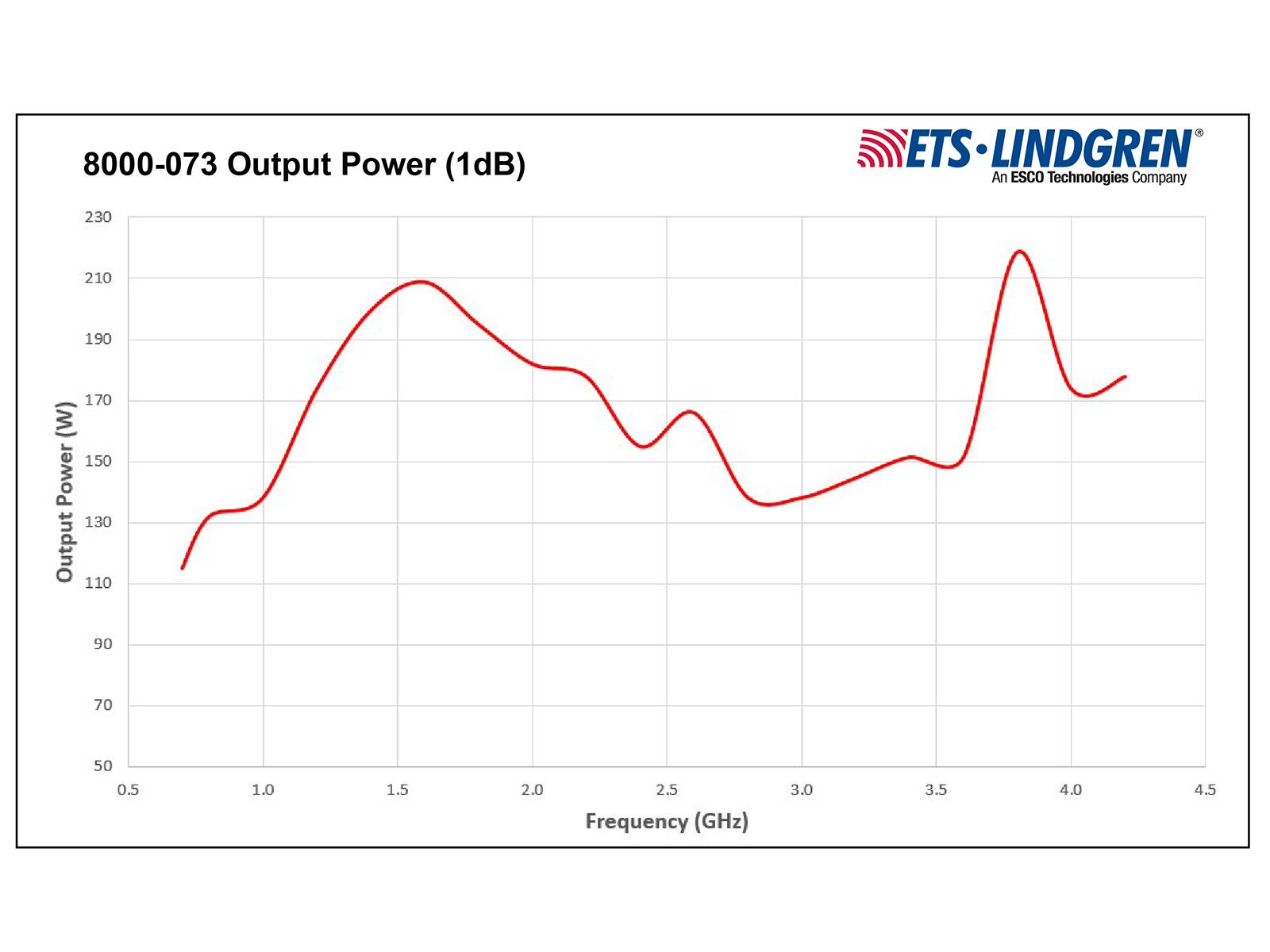

Charts
View the RF Power Amplifier Model 8000-073 charts below
