RF Power Amplifier Model 8000-071
Product Image

ETS-Lindgrens Model 8000-071 RF Power Amplifier is a 30W power amplifier, designed primarily for automotive and military applications.

Key Features


  • Designed for Automotive Testing
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock


ETS-Lindgrens Model 8000-071 RF Power Amplifier is a 30W power amplifier, designed primarily for gerneral EMC, automotive and military applications. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon based amplifiers.

The 8000-071 provides very low distortion and tolerance for 100% mismatch.


Specifications
View the RF Power Amplifier Model 8000-071 technical specifications below

Physical Specifications

Dimensions 19 in, 3U Case, 500 mm (19.6 in) Deep

Communication Interface USB, GPIB, Ethernet

Connectors Input N (f); Output N (f)

Weight 7 kg (15 lb)

Rack mount with Rear Panel Connectors


Electrical Specifications

Frequency Range: 700 MHz to 4.2GHz
Nominal Output Power: 30 W
Gain Variation: 3 dB
Harmonics: -20 dBc Maximum
Output Impedance: 50
Input VSWR: 2:1 Maximum
AC Supply: 100-240 VAC Single Phase
Supply Frequency Range: 50/60 Hz
Line Power: < 300VA

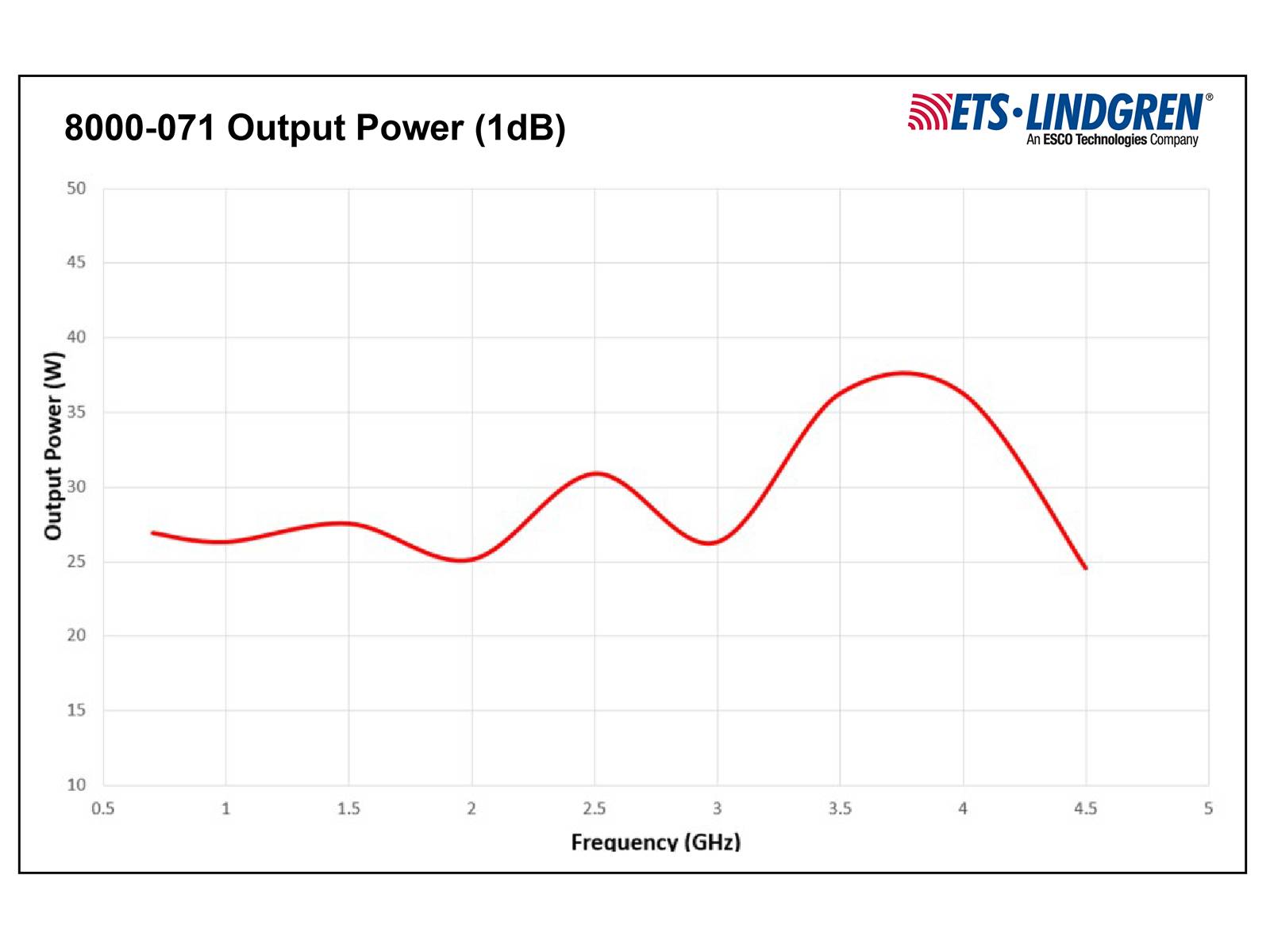

Charts
View the RF Power Amplifier Model 8000-071 charts below
