RF Power Amplifier Model 8000-074
Product Image

ETS-Lindgren's Model 8000-074 RF Power Amplifier is a 250W power amplifier, designed primarily for EMC applications that includes ISO 11452-2,IEC/EN 61000-4-3, up to and above 200 V/m requirements.

Key Features
  • IEC/EN 61000-4-3, for > 20 V/m
  • ISO 11452-2 up to 200 V/m
  • High Reliability
  • GaN Design
  • Excellent Performance
  • Efficiency Safety Interlock

ETS-Lindgren's Model 8000-074 RF Power Amplifier is a 250 W power amplifier, designed primarily for EMC applications that include ISO 11452-2 and IEC/EN 61000-4-3, up to 200 V/m requirements. Utilizing GaN technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers. The 8000-074 provides very low distortion and tolerance for 100% mismatch.

Reference material: RemoteControl Interface User Manual.

Specifications
View the RF Power Amplifier Model 8000-074 technical specifications below

Physical Specifications

Dimensions: 19 in, 7U Case, 600 mm (23.6 in) Deep
Weight: 40.0 kg (88 lb)
Case Style (Standard)Rack Mount with Rear Panel Connectors
Case Style (Optional): Bench Mount, Front Panel Connector

Electrical Specifications

Frequency Range: 700 MHz to 4.2 GHz

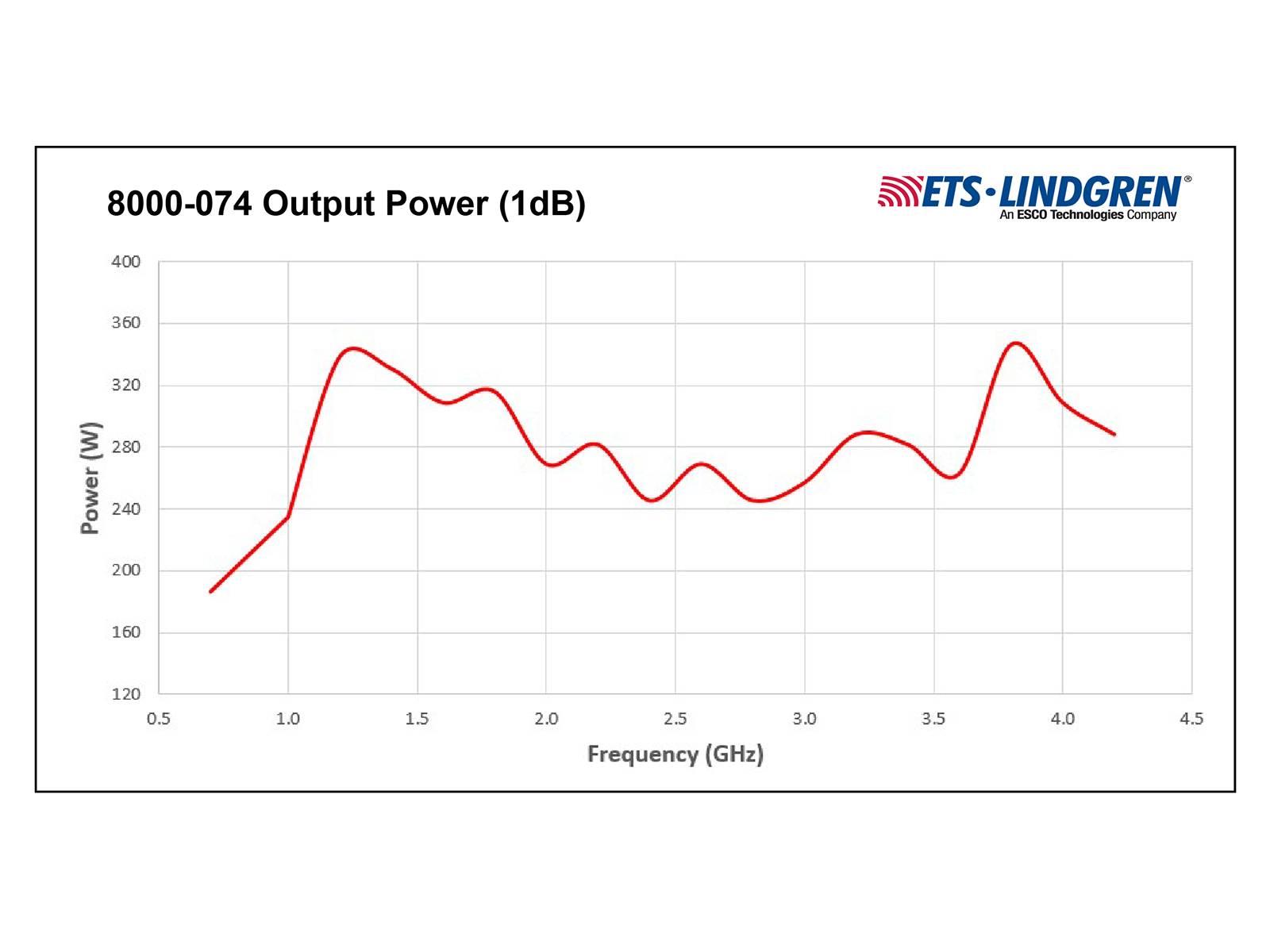

Nominal Output Power: 250 W
Gain Variation: 3 dB
Harmonics: -20 dBc Maximum
Output Impedance: 50
Input VSWR: 2:1 Maximum
AC Supply: 100 to 240 VAC, Single Phase
Supply Frequency Range: 50/60 Hz
Line Power: < 3 kVA

Remote Interface: GPIB, LAN, USB
RF Connectors: Type N(f)
Sample Ports: Type N(f)
