Key Features

  • Easy to Operate
  • Patented Hinges Allow Final Closing Movement to be Parallel to Door Frame
  • Permit Normal Swing when Fully Opening Door
  • Final RF Seal Obtained by Cam Followers
  • Download PDF Datasheet
  • ETS-Lindgren's RFD-100 doors are designed for high performance operation. The RFD-100 door system consists of frame and door in two standard sizes, 900 mm x 2100 mm (3 ft x 7 ft) and 1200 mm x 2100 mm (4 tf x 7 ft).

    The patented hinges allow the final closing movement to be parallel to the door frame, ensuring the RF integrity. The hinges also permit a normal circular swing when the door is fully opened. The RF seal is obtained through four recessed contact fingers sealed by cam followers at both edges of the door.

    The opening and closing mechanisms are equipped with bearings providing ease of operation. The door can also be designed to accommodate S81, S101, and welded shielding systems.


    The door can be equipped with an optional pneumatic opening/closing system for easier operation. The pneumatic system releases the RF tight seal allowing easier manual operation of the door.

    The RFD-100 provides an option for the addition of ferrite and absorber and are designed for an additional load of ferrites and short absorbers (max. 50 kg/m2 or 10.2 lbs/ft2). The RFD-100 can accommodate a maximum length of 400 mm (15.74 in) absorber everywhere, except around the handle area. The rigid inner plate allows the mounting of the ferrites/absorbers directly onto the door while making it possible to still perform maintenance on the door.

    Specifications
    View the Euroshield RFD-100 Swing Door technical specifications below

    Physical Specifications

    Additional Specifications

    • Door Available in Two Standard Sizes
    • Custom Sizes Available on Request
    • Left or Right Hinged
    • Door Frame Mounting Options Available for Bolted, Clamped and Welded Construction
    • Made in accordance with Mil-std-285

    Electrical Specifications

    Specifications:

    Magnetic: 42 dB @ 1 kHz; 80 dB @ 10 kHz; 120 dB @ 5 MHz to 30 MHz

    Electric : 120 dB @ 1 kHz to 30 MHz

    Planewave: 120 dB @ 30 MHz to 1 GHz

    Microwave: 120 dB @ 1 to 40 GHz

    Product Configuration

    • Door Available in Two Sizes as Standard
    • Other Size Available on Request
    • Left or Right Hinged
    • Door Frame Mounting Options Available for Bolted, Clamped and Welded Construction

    Charts

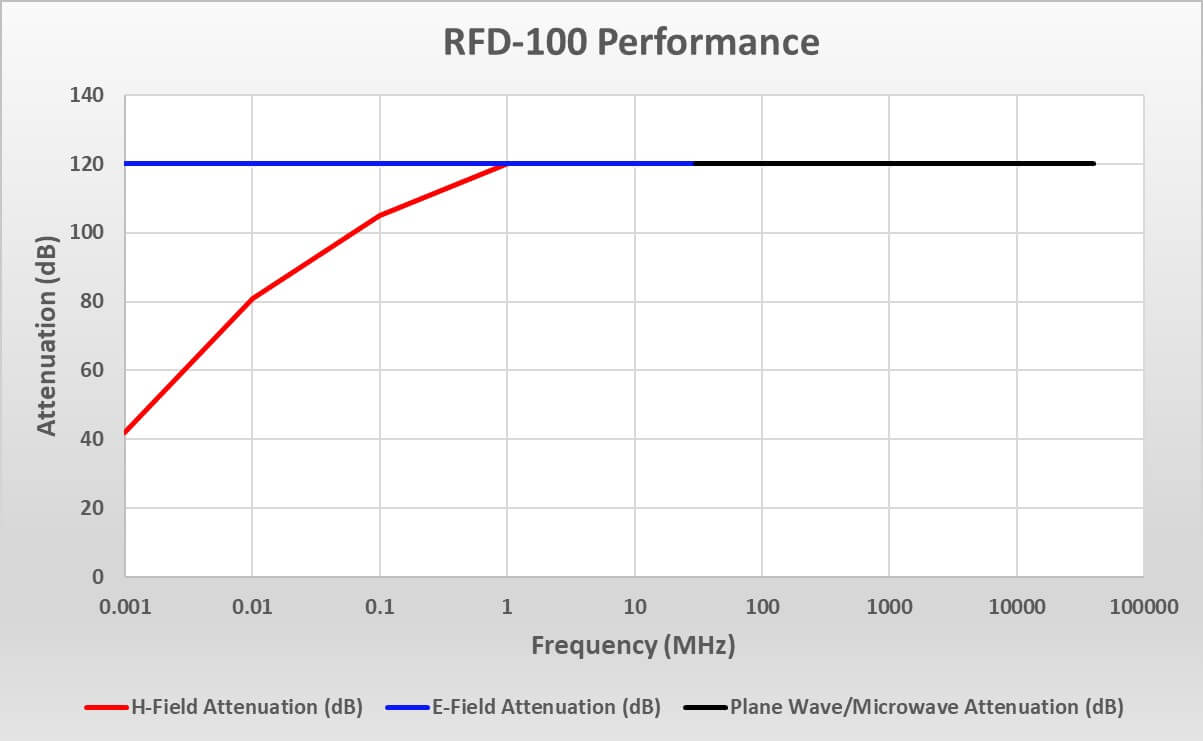

    View the Euroshield RFD-100 Swing Door charts below
