Medical Series 81 RF Shielded Enclosure - ETS-Lindgren
Product Image

Key Features

  • MRI RF Shielding
  • "Hat & Flat" Clamping System for Shield Integrity
  • Architectural, Electrical Options
  • Manual, Automatic RF Door Options
  • Standard and Custom Designs are Available
  • Window Options
  • Modular Panel Construction
  • Download PDF Datasheet
  • ETS-Lindgren's Medical Series 81 Radio Frequency Shielded Enclosure uses a time-proven design for superior MRI RF Shielding applications, with more than 1,000 installations worldwide. These MRI shielded enclosures have modular panels, creating a versatile shielding system that can be built to almost any dimensional configuration. We custom design configurations that best fits your needs, including solution options for RF doors, RF windows, waveguides, filtering and magnet OEM system requirements.

    In the heart of the RF shielding system are the 1.9 cm (.75 in) thick dimensionally-stable cores, which are laminated on both sides with 28-gauge sheet steel (cores meet ANSI A208.1 specifications). The steel laminate provides the best attenuation to magnetic and electric fields and plane waves.

    Panels are joined together with a 3.175 mm (.125 in) "hat & flat" clamping system. No special tools are required for construction. Enclosures can be erected, dismantled, and moved to another location as needed.

    View the Medical Series 81 RF Shielded Enclosure technical specifications below

    Electrical Specifications

    Magnetic Field: 20 dB @ 1 KHz; 64 dB @ 10 KHz; 110 dB @ 1 MHz
    Electric Field: 110 dB from 1 KHz thru 30 MHz
    Plane Wave: 110 dB @ 30 MHz to 1 GHz
    Microwave: 100 dB @ 10 GHz

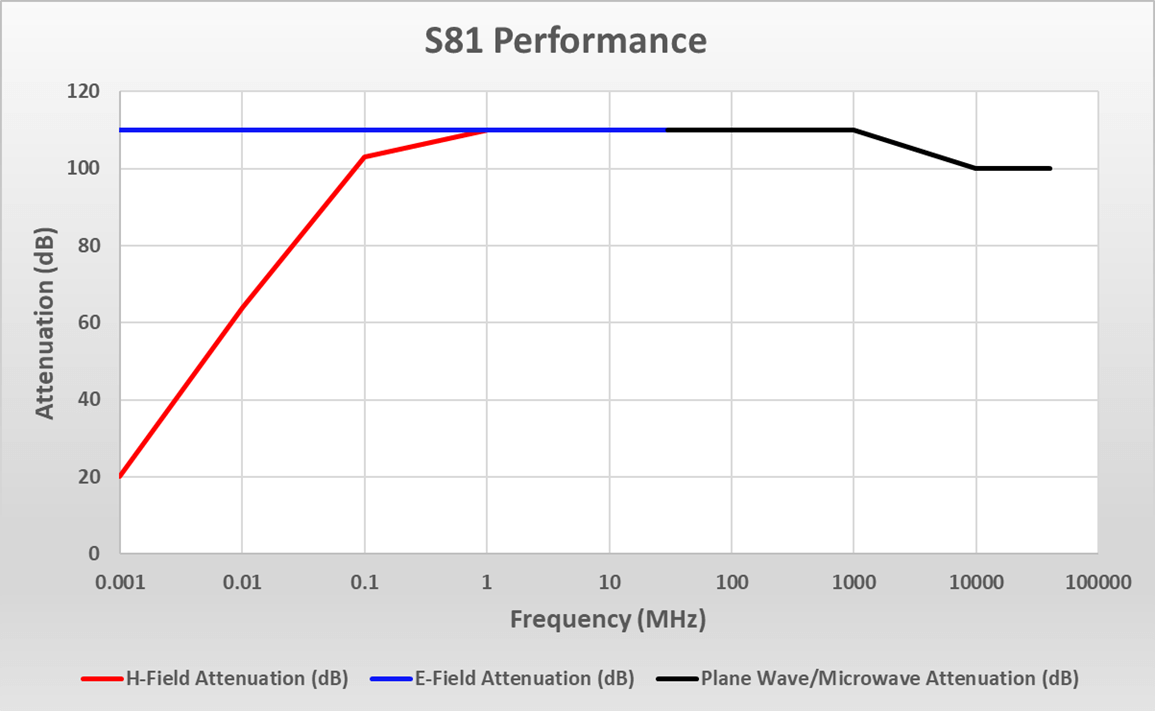

    View the Medical Series 81 RF Shielded Enclosure charts below
