Key Features

  • For Standards Testing and Pre-compliance Applications
  • Measures RF Current Without Direct Connection
  • Download PDF Datasheet
  • ETS-Lindgren's 94330-1 Current Probe is a small-sized, lightweight probe featuring a 1.90 cm (0.75 in) window, and covers the frequency range of 10 kHz to 250 MHz. This RF sniffer probe is particularly suitable where permanent or semi-permanent installation of current probes is desired. Such applications might be 6 dB or 20 dB safety margin demonstrations during system-level EMC tests, performed on complete weapon system planes, ground vehicles, or ships. Another application is sensing field-to-cable coupled common mode currents during a low level swept cw scan of a commercial aircraft undergoing FAA certification to the High Intensity Radiated Field RF electromagnetic environment. Probe saturation current is compatible with the current carrying capacity of wires placed in its window.

    Specifications
    View the 94430-1 Current Probe technical specifications below

    Physical Specifications

    Outside Diameter: 5.72 cm (2.25 in)
    Window Diameter: 1.91 cm (0.75 in)
    Weight: 0.18 kg (0.40 lb )
    Width: 2.54 cm (1.00 in)

    Electrical Specifications

    Frequency Minimum: 10 kHz
    Frequency Maximum: 250 MHz
    Load Impedance: 50 +/- j0
    Maximum Primary Current Amps:
    • 400 Hz: 200
    • DC-60 Hz: 200
    • Pulse: 70
    • RF(CW): 16
    Transfer Impedance: 6

    Charts

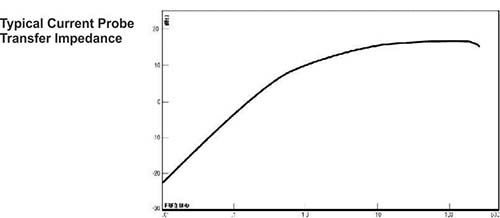

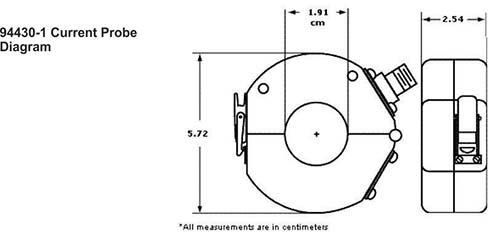

    View the 94430-1 Current Probe charts below
