Key Features

  • For Standards Testing and Pre-compliance Applications
  • Measures RF Current Without Direct Connection
  • Download PDF Datasheet
  • ETS-Lindgren's Model 94111-1 Current Probe is capable of making bulk current injection measurements up to 1 GHz. The 94111-1 is a RF sniffer probe for cable common mode current sources of radiated emissions and as measurement of cable common mode coupled currents during radiated susceptibility testing.

    The 3.18 cm (1.25 in) window makes the 94111 series probes suitable for measurements on most power cables (AWG 4/0 cable, good for several hundred amps, is 12.7 mm (0.5 in) diameter, exclusive of insulation). Probe saturation current is compatible with the current carrying capacity of wires placed in its window.

    Specifications
    View the 94111-1 Current Probe technical specifications below

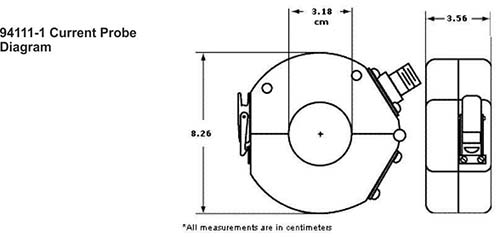

    Physical Specifications

    Outside Diameter: 8.26 cm (3.25 in)
    Window Diameter: 3.18 cm (1.25 in)
    Width: 3.56 cm (1.40 in)
    Weight: 0.43 kg (0.95 lb )

    Electrical Specifications

    Frequency Minimum: 1 MHz
    Frequency Maximum: 1000 MHz
    Load Impedance: 50 +/- j0
    Maximum Primary Current Amps:
    • 400 Hz: 200
    • DC-60 Hz: 200
    • Pulse: 50
    • RF(CW): 20

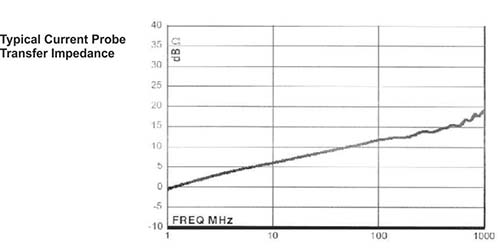

    Transfer Impedance: 1 to 10

    Charts
    View the 94111-1 Current Probe charts below
