  • For Standards Testing and Pre-compliance Applications
  • Measures RF Current Without Direct Connection
  • Download PDF Datasheet

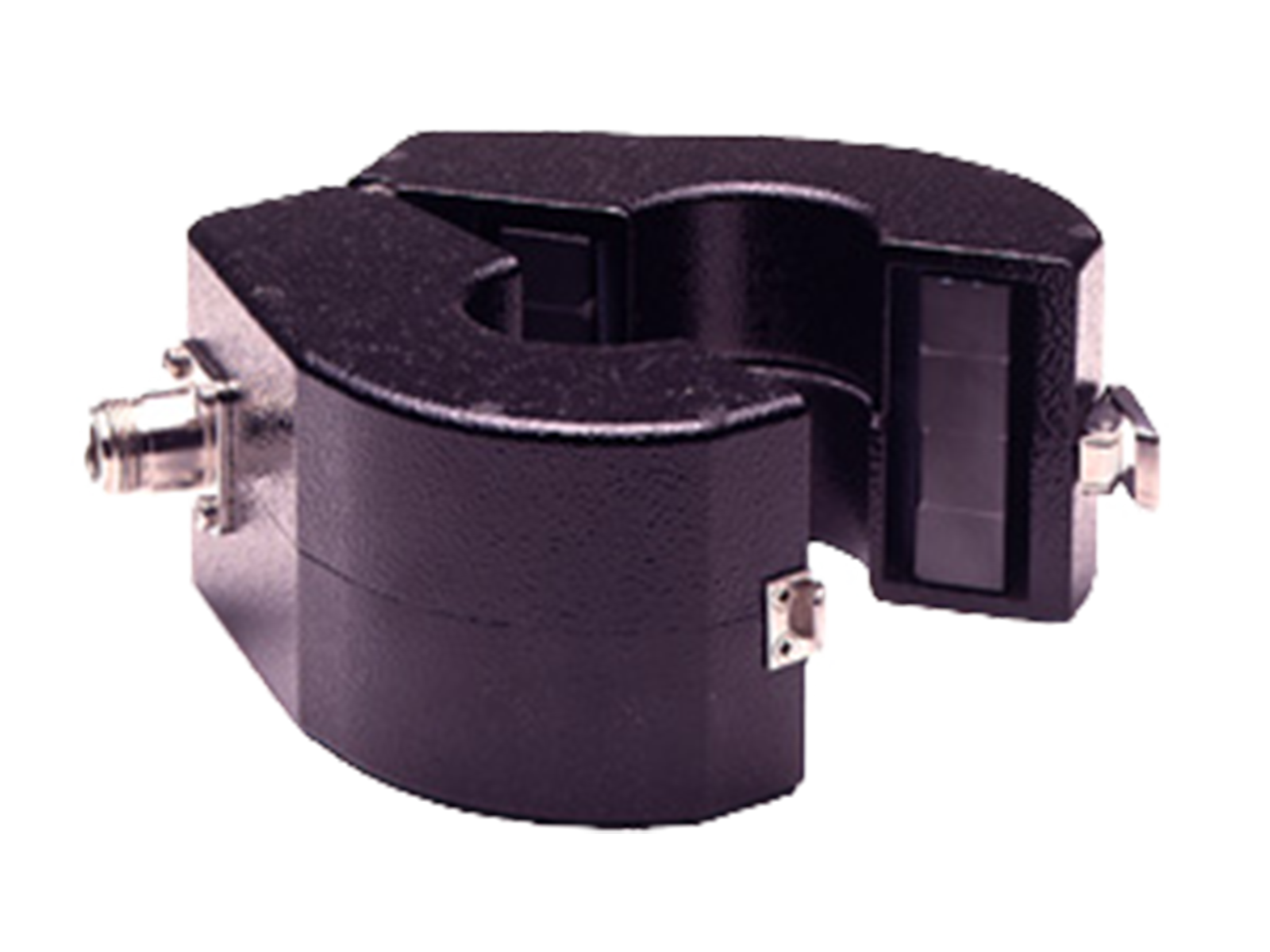

  • ETS-Lindgren's Model 93686-8 Current Probes have a large 6.66 cm (2.625 in) window diameter, making it very versatile. The 93686-8 Current Probe is an RF sniffer probe designed to perform current conducted measurement in the frequency range 10 kHz to 250 MHz, including applications requiring the measurement of low duty cycle, high level pulsed currents. The93686-8 Current Probe may be seen as a large window diameter substitute for the 91550-1 series, (appropriate frequency range and sensitivity must be selected from the available models). The larger diameter of this family is extremely useful when making common mode measurements as per MIL-STD-1399, Section 390, or for diagnostic purposes. This common made test requires both EUT feeder and return to be routed through the probe window.

    The 6.65 cm (2.62 in) window makes the 93686 series probes suitable for measurements on almost any size power or signal cable (AWG 4/0 cable, good for several hundred amps, is 12.7 mm (0.5 in) diameter, exclusive of insulation). Probe saturation current is compatible with the current carrying capacity of wires placed in its window. (Some of the models have lower saturation limits with 400 Hz power.)

    Specifications
    View the 93686-8 Current Probe technical specifications below

    Physical Specifications

    Outside Diameter: 13.97 cm (5.50 in)
    Window Diameter: 6.65 cm (2.62 in)
    Weight: 2.27 kg 5.00 lb)
    Width: 5.38 cm (2.12 in)

    Electrical Specifications

    Frequency Minimum: 10 kHz
    Frequency Maximum: 200 MHz
    Load Impedance: 50 +/- j0
    Maximum Primary Current Amps:
    • 400 Hz: 300
    • DC-60 Hz: 300
    • Pulse: 62
    • RF(CW) : 62
    Transfer Impedance: 8
