Multi-Station Hearing Screening Booths - Double-Wall
Product Image
Key Features
  • Double Wall Design, Two to Ten Test Stations
  • Master/Station Jack Panel System, Recessed Cabling
  • Sliding Curtain Dividers Between Stations
  • Low Profile 12.07 cm (4 3/4 in) Acoustic and Vibration Isolated Floor System
  • Ceiling Mounted LED lighting with Switch Adjacent to Door
  • Acoustically Engineered Ventilation System with Variable Speed Fan
  • Double Seal Acoustic Tandem Out-swing Doors with Windows

ETS-Lindgren's Multi-Station Hearing Screening Booths - Double-Wall are soundproof booths capable of testing from two to ten people simultaneously. Multi-station test booths come in five standard models and with custom sizes available.

Double wall acoustic booths provide increased isolation when ambient conditions prohibit a single wall configuration to meet ANSI specifications. Double wall acoustic booths also provide additional acoustic control to isolate patients from waiting room noise outside.

For installation convenience, the ventilation silencer can be mounted on either roof or wall depending on space constraints. May be designed for fixed or mobile configurations.

Specifications
Physical Specifications
Model
Test Positions
Interior
Exterior
Weight
RM-281
2
224 cm W x 76 cm L x 198 cm H (7 ft 4 in x 2 ft 6 in x 6 ft 6 in)
284 cm W x 137 cm L x 269 cm H (9 ft 4 in x 4 ft 6 in x 8 ft 10 in)
1,946 kg (4,290 lb)
RM-282
4224 cm W x 152 cm L x 198 cm H (7 ft 4 in x 5 ft x 6 ft 6 in)
284 cm W x 213 cm L x 269 cm H (9 ft 4 in x 7 ft x 8 ft 10 in)
3,302 kg (7,280 lb)
RM-283
6
224 cm W x 229 cm L x 198 cm H (7 ft 4 in x 7 ft 6 in x 6 ft 6 in)
284 cm W x 290 cm L x 269 cm H (9 ft 4 in x 9 ft 6 in x 8 ft 10 in)
3,910 kg (8,620 lb)
RM-284
8224 cm W x 305 cm L x 198 cm H (7 ft 4 in x 10 ft x 6 ft 6 in)
284 cm W x 366 cm L x 269 cm H (9 ft 4 in x 12 ft x 8 ft 10 in)
4,590 kg (10,120 lb)
RM-285
10
224 cm W x 381 cm L x 198 cm H (7 ft 4 in x 12 ft 6 in x 6 ft 6 in)
284 cm W x 442 cm L x 269 cm H (9 ft 4 in x 14 ft 6 in x 8 ft 10 in)
5,443 kg (12,000 lb)

NOTE: Exterior height includes roof mounted ventilation system. Other options are available if host space cannot accommodate overall height. Please allow a minimum of 10 cm (4 in) clearance between booth and host walls.

Product Options

Pass-through in Lieu of Master/Station Jack Panels for PC-based Audiometer Systems

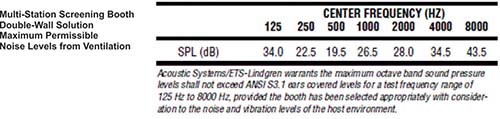

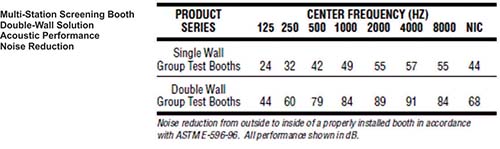

Charts
