Key Features

  • Constant Antenna Factor Over Frequency
  • Complete with Feed, Waveguide, Mount
  • Increased Power Dissipation
  • Optimal Beam Width
  • Low VSWR
  • Download PDF Datasheet
  • ETS-Lindgren's model 3160 Standard Gain Horns cover a multi-octave bandwidth of 1 GHz to 40 GHz. All models in the series are linearly polarized, have medium gain, optimum half power beamwidth (equal in both horizontal and vertical planes), and low VSWR. Antenna factors are constant throughout the entire operating frequency range. Comparisons of measured versus computed gain have been found to be within +/- 0.5 dB. ANSI C63.4 recommends the use of standard gain horn antennas as a reference standard above 1 GHz.

    While the coaxial feed allows power input of up to 550 W (Models 3160-01, 02, 03), higher power input is possible by removing the detachable feed and direct mounting the flange to an amplifier waveguide port. While the coaxial feed allows power input of up to 550 W (Models 3160-01, 02, 03), higher power input is possible by removing the detachable feed and direct mounting the flange to an amplifier waveguide port.

    Specifications
    View the 3160 Pyramidal Standard Gain Antenna technical specifications below

    Physical Specifications

    Model
    Connectors
    Waveguide type
    Weight
    Width
    Depth
    Height
    3160-01
    Type N Female
    WR-770
    25.00 kg (55.12 lb)
    63.22 cm (24.89 in)
    103.25 cm (40.65 in)
    47.50 cm (18.70 in)
    3160-02
    Type N Female
    WR-650
    10.00 kg (22.05 lb)
    53.44 cm (21.04 in)
    88.29 cm (34.76 in)
    40.18 cm (15.82 in)
    3160-03
    Type N Female
    WR-430
    4.55 kg (10.03 lb)
    34.65 cm (13.64 in)
    64.14 cm (25.25 in)
    26.65 cm (10.49 in)
    3160-04
    Type N Female
    WR-284
    2.27 kg (5.00 lb)
    24.13 cm (9.50 in)
    55.25 cm (21.75 in)
    18.14 cm (7.14 in)
    3160-05
    Type N Female
    WR-187
    1.62 kg (3.57 lb)
    16.33 cm (6.43 in)
    29.90 cm (11.77 in)
    12.24 cm (4.82 in)
    3160-06
    Type N Female
    WR-137
    0.80 kg (1.76 lb)
    12.24 cm (4.82 in)
    29.90 cm (11.77 in)
    9.04 cm (3.56 in)
    3160-07
    Type N Female
    WR-90
    0.43 kg (0.95 lb)
    8.06 cm (3.17 in)
    22.63 cm (8.91 in)
    6.26 cm (2.46 in)
    3160-08
    Type N Female
    WR-62
    0.28 kg (0.62 lb)
    5.54 cm (2.18 in)
    14.00 cm (5.51 in)
    4.27 cm (1.68 in)
    3160-09
    Type K Female
    WR-42
    0.11 kg (0.24 lb)
    3.84 cm (1.51 in)
    10.49 cm (4.13 in)
    2.95 cm (1.16 in)
    3160-10
    Type K Female
    WR-28
    0.06 kg (0.13 lb)
    2.76 cm (1.09 in)
    8.69 cm (3.42 in)
    2.15 cm (0.85 in)

    Electrical Specifications

    Model
    Frequency
    E-Plane
    H-Plane
    Maximum Continuous Power
    Antenna Factor
    Gain

    Typical Field Strength
    Pattern Type
    Polarization
    3160-01
    0.96 GHz to 1.46 GHz
    26
    27
    550 W
    15.4 dB (1/m)
    16.5 dBi
    700 V/m
    Directional
    Linear
    3160-02
    1.12 GHz to 1.70 GHz
    26
    26
    550 W
    16.9 dB (1/m)
    16.3 dBi
    700 V/m
    Directional
    Linear
    3160-03
    1.70 GHz to 2.60 GHz
    27
    27
    550 W
    20.6 dB (1/m)
    16.3 dBi
    650 V/m
    Directional
    Linear
    3160-04
    2.60 GHz to 3.95 GHz
    26
    27
    250 W
    23.7 dB (1/m)
    16.7 dBi
    500 V/m
    Directional
    Linear
    3160-05
    3.95 GHz to 5.85 GHz
    26
    27
    250 W
    27.3 dB (1/m)
    16.7 dBi
    500 V/m
    Directional
    Linear
    3160-06
    5.85 GHz to 8.20 GHz
    24
    25
    250 W
    29.9 dB (1/m)
    17.1 dBi
    500 V/m
    Directional
    Linear
    3160-07
    8.20 GHz to 12.40 GHz
    26
    26
    250 W
    33.5 dB (1/m)
    16.9 dBi
    500 V/m
    Directional
    Linear
    3160-08
    12.40 GHz to 18.00 GHz
    26
    27
    200 W
    37.1 dB (1/m)
    16.7 dBi
    435 V/m
    Directional
    Linear
    3160-09
    18.00 GHz to 26.50 GHz
    27
    27
    50 W
    40.3 dB (1/m)
    16.8 dBi
    220 V/m
    Directional
    Linear
    3160-10
    26.50 GHz to 40.00 GHz
    27
    27
    10 W
    43.5 dB (1/m)
    17.0 dBi
    100 V/m
    Directional
    Linear

    Product Configuration

    • Horn Assembly Consists of Coaxial Feed, Flanged Waveguide, and Mounting Bracket
    • Mounting Bracket with 1/4 x 20 Threads
    • Manual

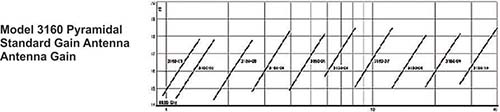

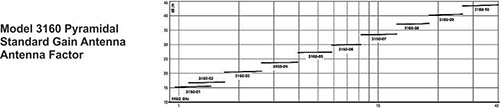

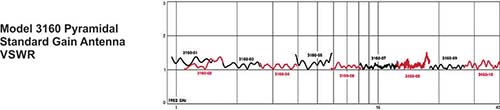

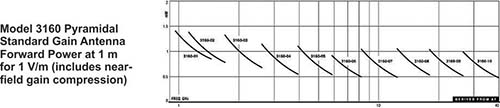

    Charts
    View the 3160 Pyramidal Standard Gain Antenna charts below
