3164-06 Open Boundary Quad-Ridged Horn - ETS-Lindgren
Product Image

Key Features

  • Linear or Circular Polarization (With Hybrid)
  • Compact Design
  • Flat Gain For Upper 2/3 of Range
  • Download PDF Datasheet
  • ETS-Lindgren's Model 3164-06 Open Boundary Quad-ridged Horn Antenna's open boundary design is similar to two double-ridged waveguide antennas orthogonally to each other. The antennas surprisingly compact size offers improved pattern and gain when compared with enclosed quad-ridged horns of similar dimensions.

    The 3164-06 has exceptional bandwidth, with operating frequency band for optimum performance from 300 MHz to 6 GHz. Two orthogonally placed input feeds allow this antenna to generate both linear and circular polarized measurements across the entire frequency band, without manual polarization.

    View the 3164-06 Open Boundary Quad-Ridged Horn technical specifications below

    Physical Specifications

    Length: 51.4 cm (20.24 in)
    Width: 50 cm (19.69 in)
    Height: 50 cm (19.69 in)
    Weight: 9.3 kg (20.50 lb)

    Electrical Specifications

    Frequency Minimum: 300 MHz
    Frequency Maximum: 6 GHz
    Connectors: SMA Female (2)
    Cross Polarization Isolation: >25 dB
    Impedance (Nominal): 50
    Maximum Continuous Power: 50 W
    Pattern Type: Directional
    Polarization: Dual Linear

    Product Options

    • Custom Cases

    Product Configuration

    • Antenna
    • Individually Calibrated at 3m per ANSI C63.5
    • Manual

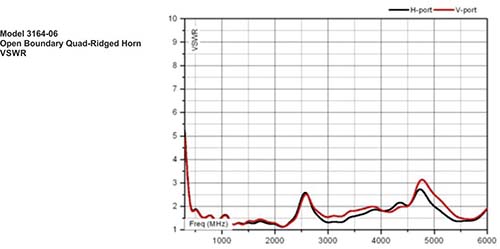

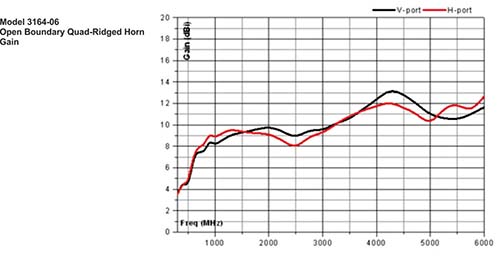

    View the 3164-06 Open Boundary Quad-Ridged Horn charts below
