3117 Double-Ridged Guide Antenna - ETS-Lindgren
Product Image

Key Features

  • Ultra Broadband, 1 GHz to 18 GHz
  • 300 W Continuous Power Input Capacity
  • Maintains Single Lobe Radiation Pattern Over Frequency
  • Uniform Gain
  • Low VSWR
  • Flexible Mounting Configuration
  • Download PDF Datasheet
  • ETS-Lindgren's Model 3117 Double-ridged Waveguide corrects the lower gain at the upper end of the frequency range, commonly found in ridged waveguide antennas.

    Users of this antenna benefit from uniform illumination of target surfaces and accurate gain measurement. In addition, the 3117 exhibits high gain and low VSWR across its operational frequency band, accepting moderate power input of 300 watts.

    The electrical characteristics of this antenna were designed and modeled using powerful workstations running electromagnetic simulation software. Equally important, experienced RF engineers worked with our manufacturing team to produce a practical and affordable realization of the modeling process. All production units are individually calibrated at our A2LA accredited lab.

    View the 3117 Double-Ridged Guide Antenna technical specifications below

    Physical Specifications

    Height: 15.5 cm (6.1 in)
    Width: 17.5 cm (6.9 in)
    Depth: 17.5 cm + 15.5 cm Mount (6.9 in + 6.1 in Mount)

    Electrical Specifications

    Frequency Minimum: 1 GHz
    Frequency Maximum: 18 GHz
    Impedance (Nominal): 50
    Maximum Continuous Power: 300 W
    Peak Power: 500 W
    Pattern Type: Directional
    Polarization: Linear
    VSWR: 3.5:1 Maximum, <2:1 Above 1.5 GHz
    Connectors: Type N

    Product Options

    • ETS-Lindgren Offers Several Non-metallic, Non-reflective Tripods

    Product Configuration

    • Antenna Assembly
    • Mounting Bracket Drilled to Accept ETS-Lindgren or Other Tripod Mounts with 1/4 in x 20 Threads
    • Rear "Stinger" Mount
    • Individually calibrated at 1 m per SAE ARP 958 at our A2LA accredited lab. 3 m calibration per ANSI C63.5 available at additional cost.
    • Actual Antenna Factors and a Signed Certificate of Calibration Conformance Included with Manual
    • Manual
    • Carrying case included

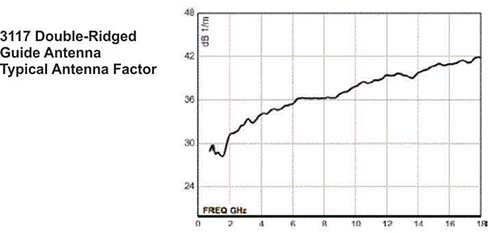

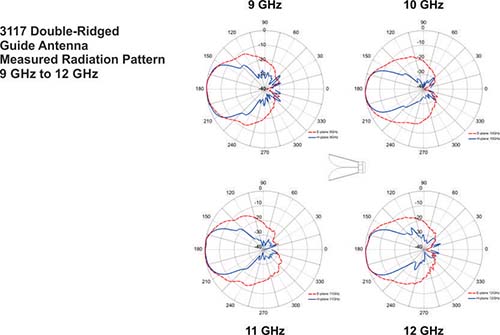

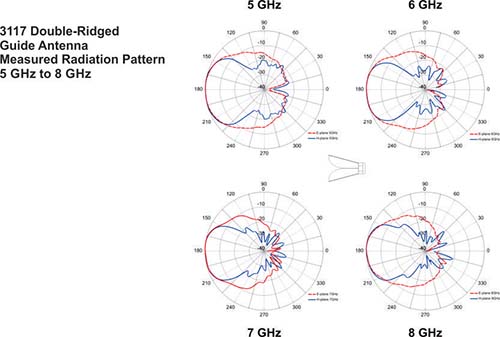

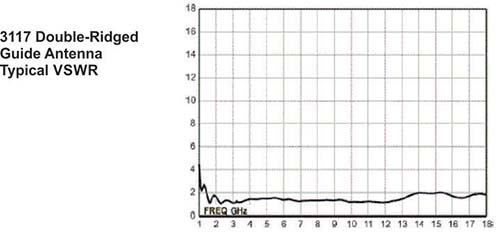

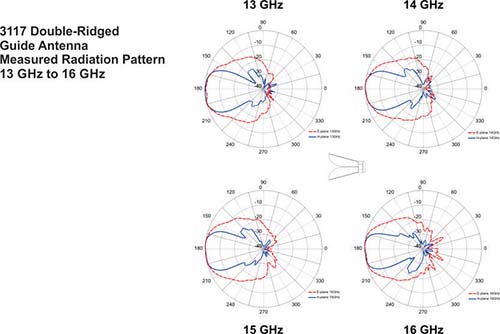

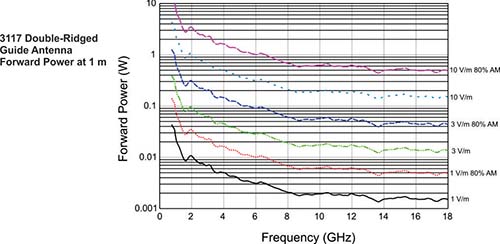

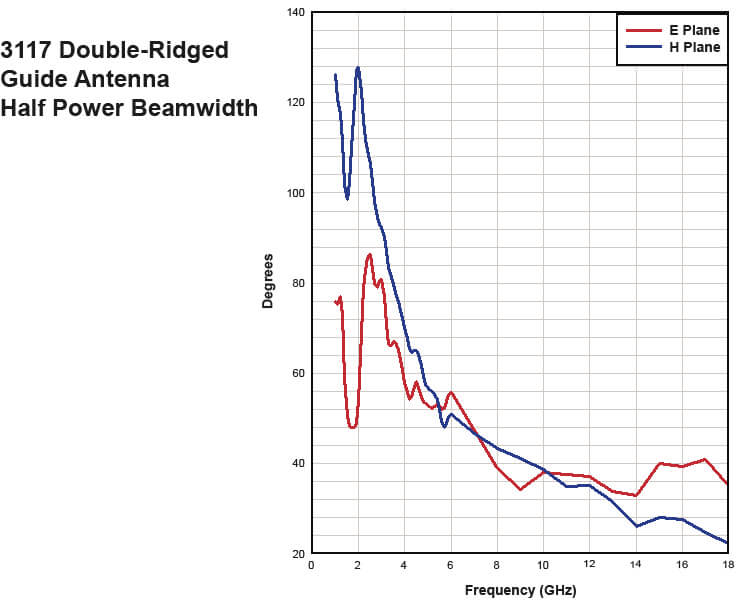

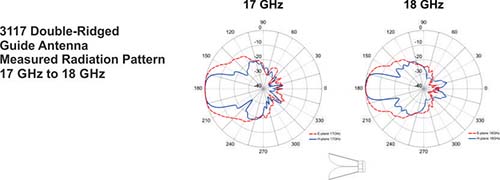

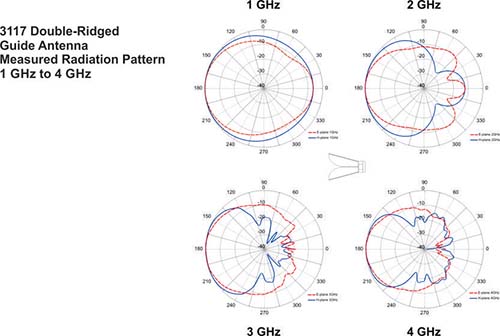

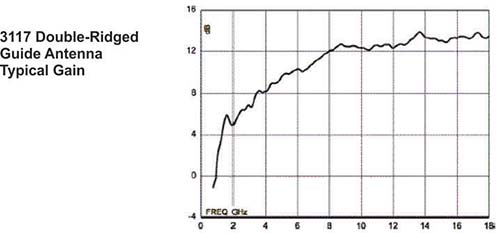

    View the 3117 Double-Ridged Guide Antenna charts below
