Key Features

  • 100 MHz to 1 GHz Frequency Range
  • Low VSWR
  • Uniform Gain
  • Continuous Power Handling up to 2000 W
  • Download PDF Datasheet
  • ETS-Lindgrens Model 3112 Double-ridged Waveguide Horn is a linearly polarized broadband antenna providing high gain and excellent VSWR characteristics over a broadband frequency range of 100 MHz to 1 GHz. The antenna is especially effective for generating high electromagnetic fields with relatively low power input.

    The 3112s high gain makes it suitable for generating the high fields (200 V/m) necessary per the ISO 11451-2 and SAE J551/11 full-vehicle automotive radiated immunity standards with less than 2 kW. Additionally, since the Model 3112 is a double-ridge waveguide horn, it is the accepted antenna for MIL-STD-461E, bringing the desirable performance of this type of antenna lower frequencies.

    Like other double-ridged waveguides in this series, the Model 3112 is precision manufactured from aluminum, making it durable and relatively lightweight. To maximize performance, a type N connector is used (other connectors available upon request). Each antenna is individually calibrated at our A2LA accredited test lab and comes with actual factors and a signed Certificate of Conformance. A two-year warranty is included.

    Specifications
    View the 3112 Double-Ridged Guide Antenna technical specifications below

    Physical Specifications

    Height: 144 cm (56.69 in)
    Length: 195.6 cm (77.01 in)
    Width: 186.6 cm (73.46 in)
    Weight: 86.1 kg (189.82 lb)

    Electrical Specifications

    Frequency Minimum: 100 MHz
    Frequency Maximum: 1 GHz
    Impedance (Nominal): 50
    Maximum Continuous Power: 800 W
    Maximum Power: 2 kW
    Pattern Type: Directional
    Polarization: Linear
    VSWR: <1.6:1

    Product Options

    • 109621 Positioning System with pneumatic polarization


    Product Configuration

    • Antenna
    • Mounting Brackets
    • Welded Aluminum Support Frame and Front Rest Bar
    • Two Year Warranty

    Charts

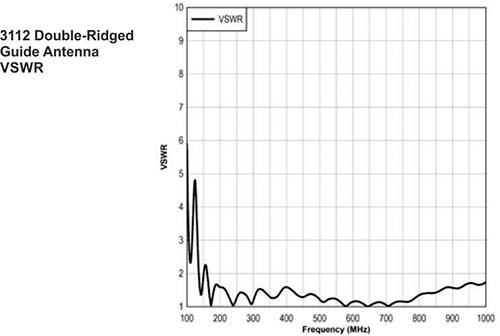

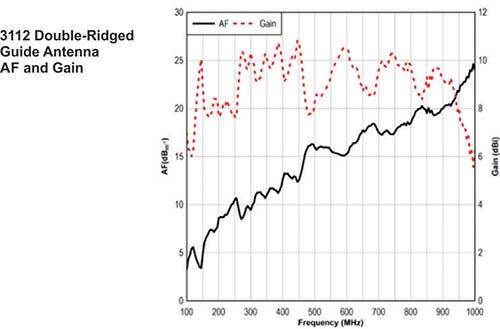

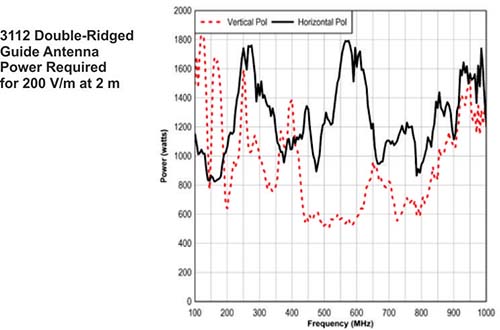

    View the 3112 Double-Ridged Guide Antenna charts below
