Key Features

  • 200 MHz to 2.5 GHz Frequency Range
  • Two Year Warranty
  • Uniform Gain
  • Low VSWR
  • Individually Calibrated
  • Integral Mounting
  • Download PDF Datasheet
  • ETS-Lindgren's 3106B Double-Ridged Guide Antenna is especially effective for generating high electromagnetic fields with relatively low power input.

    The antenna is also useful for receiving low-level signals where high gain characteristics are needed. Although large in size, 93.3 cm (36.7 in), this antenna weighs only 11.8 kg (26 lb). A Type N female connector is used for increased power handling and optional RF connectors are available.

    The 3106B Double-Ridged Guide Antenna has uniform gain through its frequency span, providing efficient performance characteristics and directionality. It can handle 1000 W peak and 800 W continuously. Constructed of lightweight corrosion-resistant aluminum, our 3106B Double-Ridged Guide Antenna will provide years of trouble-free indoor and outdoor service.

    Specifications
    View the 3106B Double-Ridged Guide Antenna technical specifications below

    Physical Specifications

    Height: 72.9 cm (28.70 in)
    Length: 97.8 cm (38.50 in)
    Width: 93.3 cm (36.7 in)
    Weight : 11.8 kg (26.0 lb)

    Electrical Specifications

    Frequency Minimum: 200 MHz
    Frequency Maximum: 2.5 GHz
    Connectors: Type N Female (Standard)
    Impedance (Nominal): 50
    VSWR: <1.6:1
    Pattern Type: Directional
    Polarization: Linear

    Model
    Power Rating
    Power Rating
    3106B (Standard with Type N Connector)
    <300 MHz
    300 MHz to 1 GHz
    1 GHz to 2.5 GHz
    1.0 kW
    500 W
    300 W
    3106B-7/16 DIN
    <300 MHz
    300 MHz to 1 GHz
    1 GHz to 2.5 GHz
    1.6 kW
    800 W
    500 W
    3106B-SC
    <300 MHz
    300 MHz to 1 GHz
    1 GHz to 2.5 GHz
    1.0 kW
    500 W
    300 W

    Product Options

    ETS-Lindgren Offers Several Non-metallic, Non-reflective Tripods

    Product Configuration

    • Mounting Bracket Drilled Accepts an ETS-Lindgren or Other Tripod Mount with Standard 1/4 in x 20 Threads
    • Individually Calibrated at 1 m per SAE ARP 958.
    • Actual Factors and a Signed Certificate of Calibration Conformance Provided
    • Manual

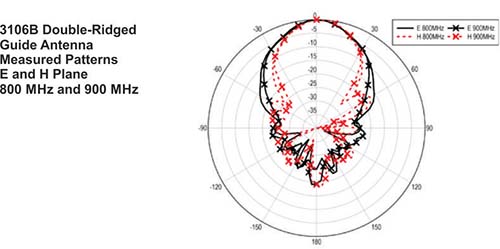

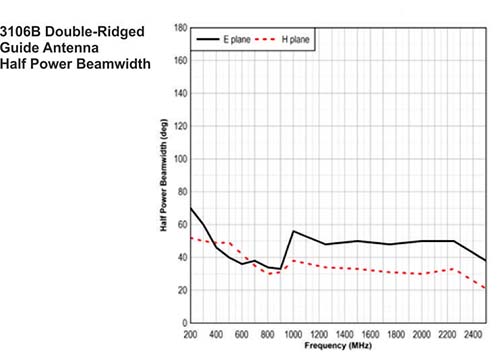

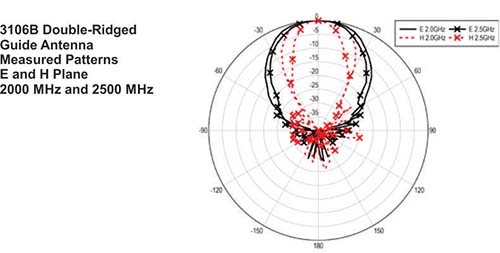

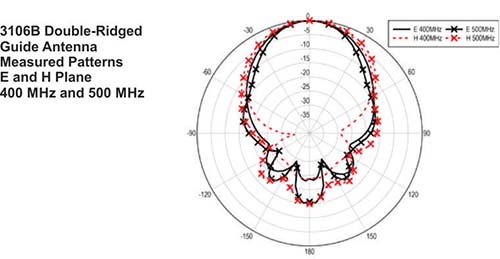

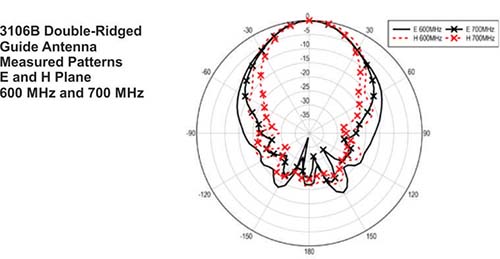

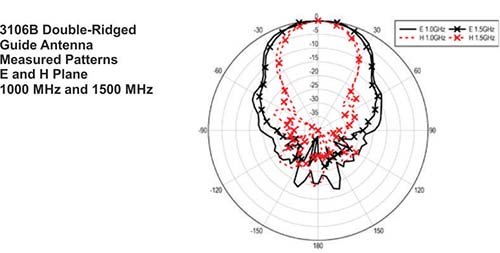

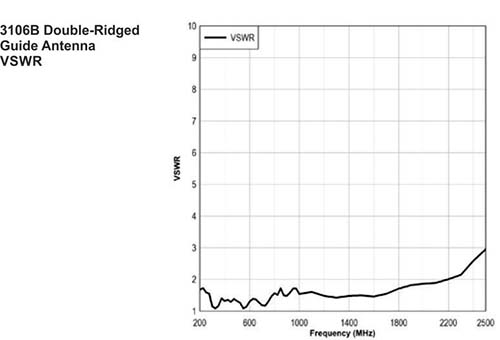

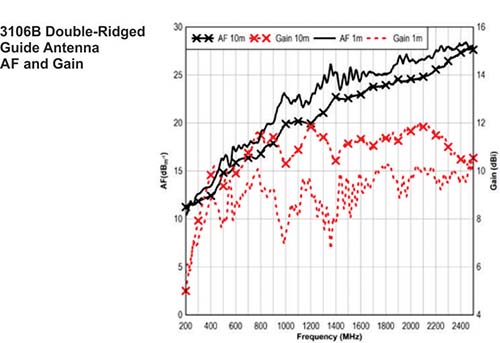

    Charts
    View the 3106B Double-Ridged Guide Antenna charts below
