3181 Broadband Mini-Bicon Antenna - ETS-Lindgren
Product Image

Key Features

  • 500 MHz to 18 GHz Frequency Range (The antenna is recommended for the 500 MHz to 9 GHz range but data is supplied up to 18 GHz where it can be used for spectrum monitoring.)
  • Ideal for:
    • Chamber Characterization
    • Broadband Spectrum Monitoring
  • Omnidirectional Pattern Conforms with CISPR-16
  • Download PDF Datasheet
  • ETS-Lindgren's Model 3181 Broadband Mini-Bicon Antenna is a broadband omnidirectional antenna with a radiation pattern that conforms to the CISPR-16 specifications. The 3181s frequency range covers most wireless bands worldwide, it can also be used for surveying or spectrum monitoring when used with a portable spectrum analyzer.

    View the 3181 Broadband Mini-Bicon Antenna technical specifications below

    Physical Specifications

    Length: 36.2 cm (14.25 in)
    Width: 15.25 cm (6.00 in)
    Stinger Length: 17.8 cm (7.01 in)

    Electrical Specifications

    Frequency Minimum: 500 MHz
    Frequency Maximum: 18 GHz
    Connectors: SMA (F)
    Impedance (Nominal): 50
    Maximum Continuous Power:
    • 200 watts @ 500 MHz
    • 25 watts @ 18 GHz
    VSWR Ratio (Average): <2:1
    Pattern Type: Omnidirectional
    Polarization: Linear

    Product Options

    • Carrying Cases
    • ETS-Lindgren Offers Several Non-metallic, Non-reflective Tripods

    Product Configuration

    • Model 3181 Antenna
    • Weather-proofing
    • Mounting Adapter for Tripod Mounting
    • Individually calibrated at 1 m per SAE ARP 958 at our A2LA accredited lab. 3 m calibration per ANSI C63.5 available at additional cost. Actual antenna factors and a signed Certificate of Calibration Conformance included with manual.
    • Manual

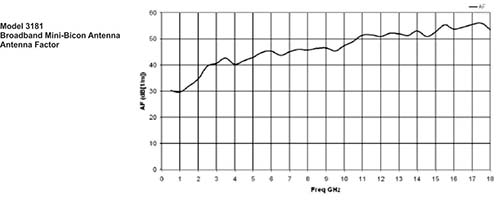

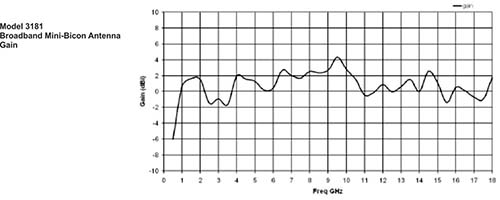

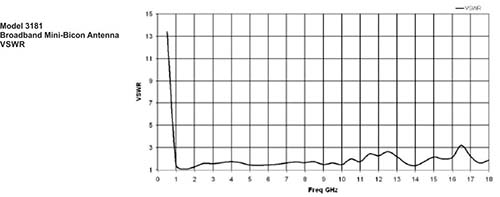

    View the 3181 Broadband Mini-Bicon Antenna charts below
