3109 Biconical Antenna - ETS-Lindgren
Product Image

Key Features

  • Frequency Range 20 MHz to 300 MHz
  • Peak Power Handling Capability Up to 2 kW
  • Unique Element Design Improves Performance
  • Compact Size for Use in Limited Space
  • Improved Balun Design for Increased Efficiency
  • Quality Construction for Trouble-Free Service
  • Download PDF Datasheet
  • ETS-Lindgren's Model 3109 Biconical Antenna uses a modified Guanella balun for impedance transformation and matching. The Model 3109 provides a broad frequency range and because it is constructed of much heavier materials, it has a maximum continuous input power up to 1 kW, with a peak power handling capability up to 2 kW. While this antenna typically has a high VSWR at frequencies below 70 MHz, it is still capable of generating a high field strength with acceptable input power in this region of the band. The optional extended elements markedly improve its performance in this region. This antenna is ideal for IEC 1000-4-3 testing.

    ETS-Lindgren is the only manufacturer to offer optional extended elements. These elements are twice as long as standard elements and enable users to generate high fields at low frequencies with less than 25% of the power usually required.

    View the 3109 Biconical Antenna technical specifications below

    Physical Specifications

    Width: 133 cm (52.36 in)
    Weight: 3.2 kg (7.05 lb)

    Electrical Specifications

    Frequency Minimum: 20 MHz
    Frequency Maximum: 300 MHz
    Connectors: Type N (f)
    Impedance (Nominal): 50
    Maximum Continuous Power: 1 kW (N); 1,5kW (7/16 DIN)
    Pattern Type: Omnidirectional
    Peak Power: 2 kW
    Polarization: Linear
    VSWR (Average): 1.9:1

    Product Options

    • Custom Case
    • ETS-Lindgren Manufacturers Several Non-metallic, Non-reflective Tripods
    • Antenna Factor and Gain Data provided at additional cost
    • Optional 7/16 DIN connector for higher input power applications

    Product Configuration

    • Antenna (Balun and Elements)
    • Balun acts as Base Accepts an ETS-Lindgren Tripod or Most Other Manufacturers Tripods
    • VSWR data provided

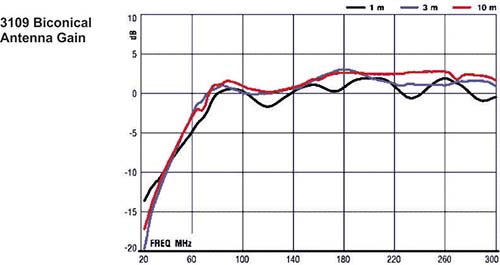

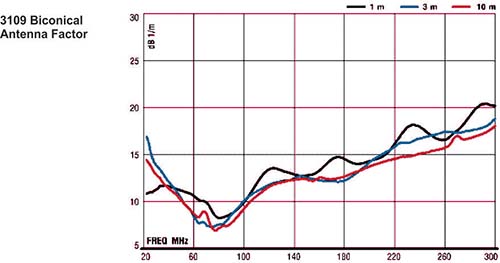

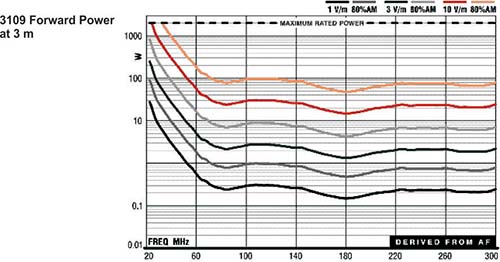

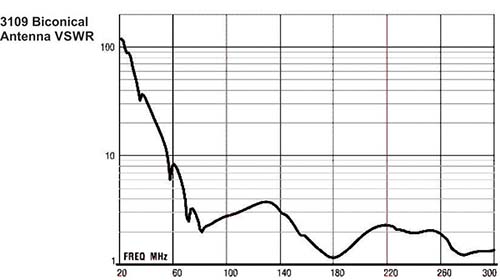

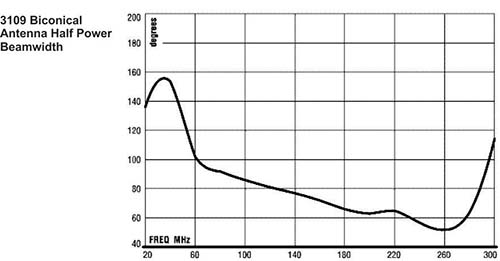

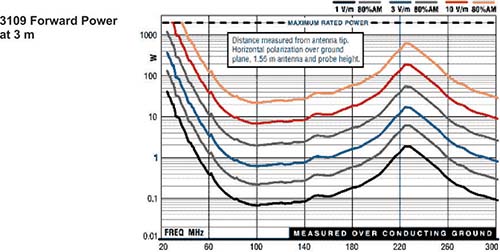

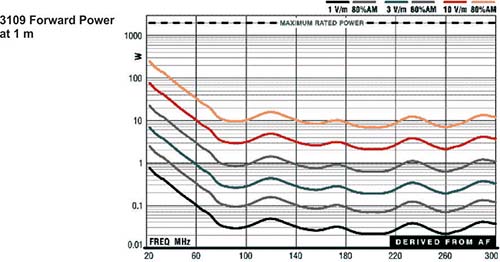

    View the 3109 Biconical Antenna charts below
