Key Features

  • Generates homogeneous fields for immunity testing
  • Close proximity immunity testing
  • IEC/EN 61000-4-39 standard
  • Download PDF Datasheet
  • The ETS-Lindgren Model 3166 and 3167 TEM Horn Antennas generate homogeneous fields in the frequency range of 380 MHz to 6 GHz specifically for immunity testing in close proximity as per the IEC/EN 61000-4-39 standard. The 3166 model operates from 380 MHz to 3 GHz with less than 7: 1 VSWR from 400 MHz to 700 MHz and 3: 1 VSWR from 700 MHz and above. The 3167 operates from 3 GHz to 6 GHz with less than 2: 1 VSWR.

    Specifications
    View the 3166 & 3167 TEM Horn Antennas technical specifications below

    Physical Specifications

    3166 Physical Specifications

    • Width: 21.6 cm (8.5 in)
    • Depth: 47.6 cm (18.75 in)
    • Height: 13.2 cm (5.2 in)
    • Approximate Weight: 3.6 kg (8 lb)

    3167 Physical Specifications

    • Width: 5.7 cm (2.24 in)
    • Depth: 17.3 cm (6.8 in)
    • Height: 3.2 cm (1.26 in)
    • Approximate Weight: 0.2 kg (0.4 lb)

    Electrical Specifications

    3166 Electrical Specifications

    • Application: IEC/EN 6100000-4-39
    • Frequency Range: 380 Mhz to 3 GHz
    • VSWR: 7:1 (400 MHz to 700 MHz), 3:1 700MHz to 3 GHz)
    • Maximum Continuous Power: 250 W
    • Impedance (Nomincal): 50
    • Connector: N Type, Female

    3167 Electrical Specifications

    • Application: IEC/EN 6100000-4-39
    • Frequency Range: 3 GHz to 6 Ghz
    • VSWR: 2:1
    • Maximum Continuous Power: 250 W
    • Impedance (Nomincal): 50
    • Connector: N Type, Female

    Product Configuration

    4-TR tripod: constructed of linen phenolic and delrin, designed with an adjustable cneter post for precise height adjustments.

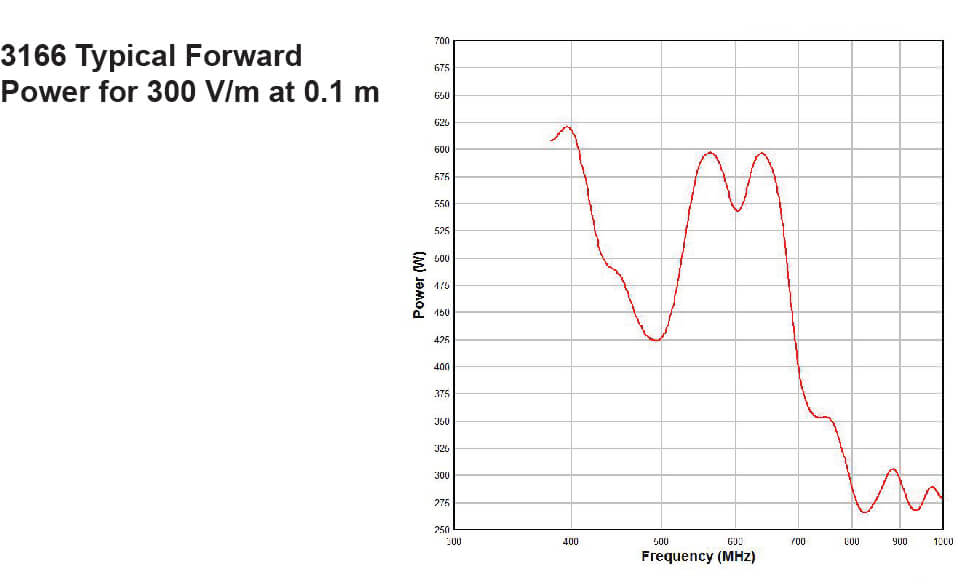

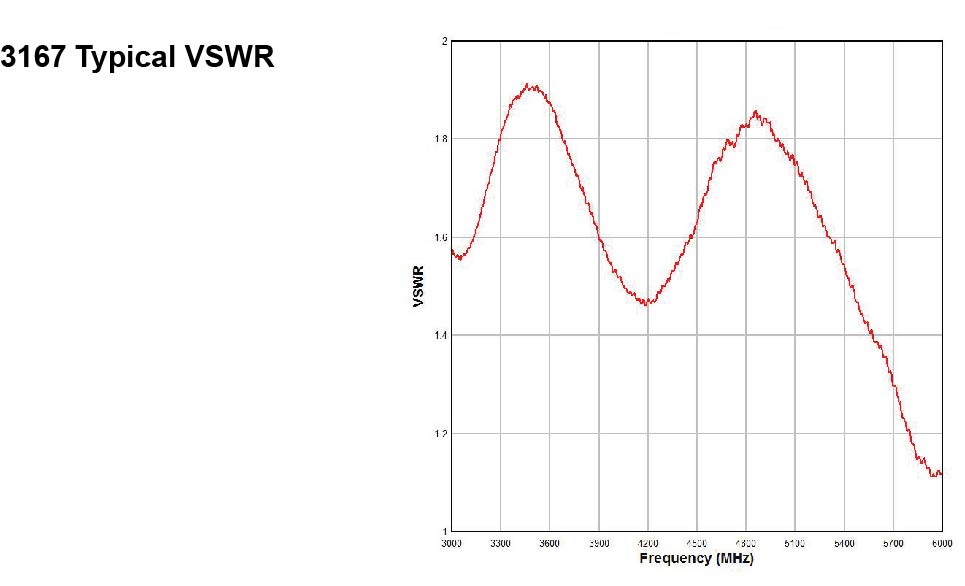

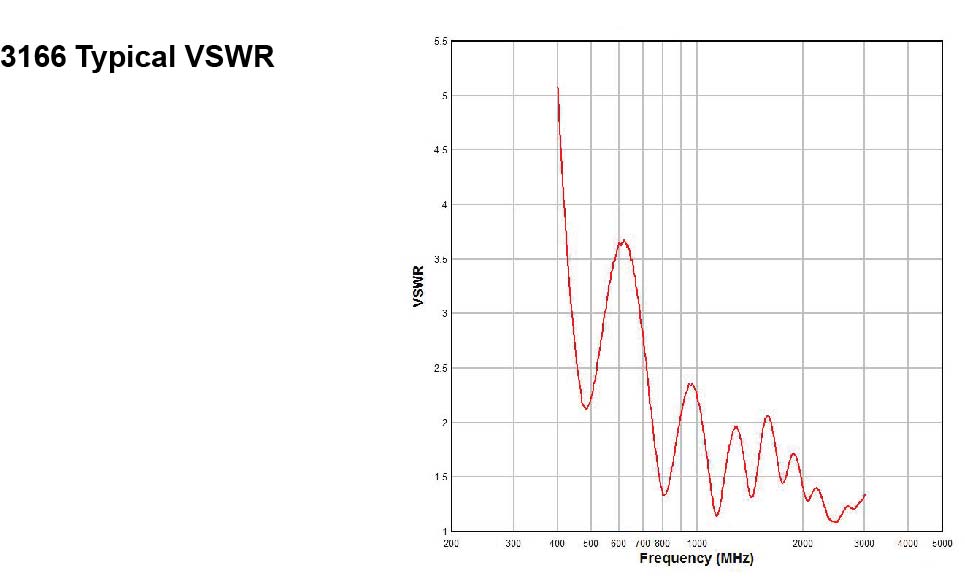

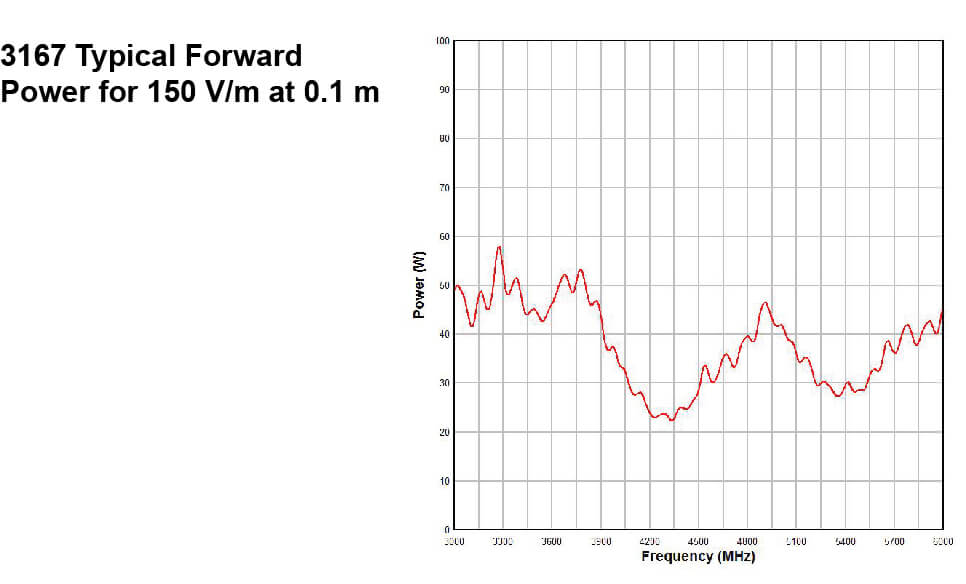

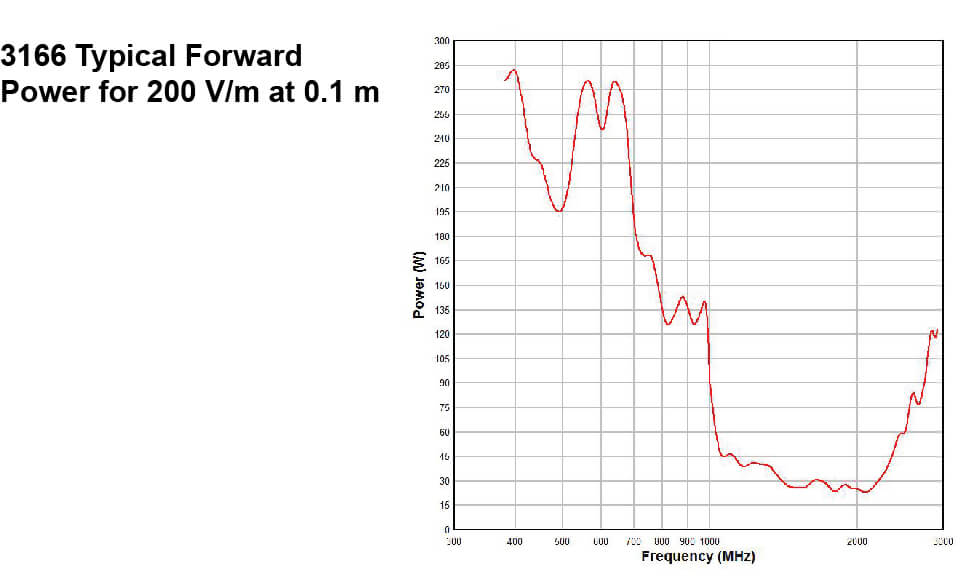

    Charts
    View the 3166 & 3167 TEM Horn Antennas charts below
