Key Features

  • ISO 11452-4, 300 mA
  • Ideal for BCI Testing
  • Mismatch Tolerant and Unconditionally Stable
  • Rugged Design for EMC Testing
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-030 RF Power Amplifier is a 260W power amplifier, designed primarily for EMC applications that include ISO 11452-4 and DO-160 testing for BCI. This RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-030 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8000-030 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 6U Case, 440 mm (17.3 in) Deep
    Weight: 30.0 kg (66.1 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Frequency Range: 10 kHz to 400 MHz
    Nominal Output Power: 260W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 250 VAC, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: <2 kVA

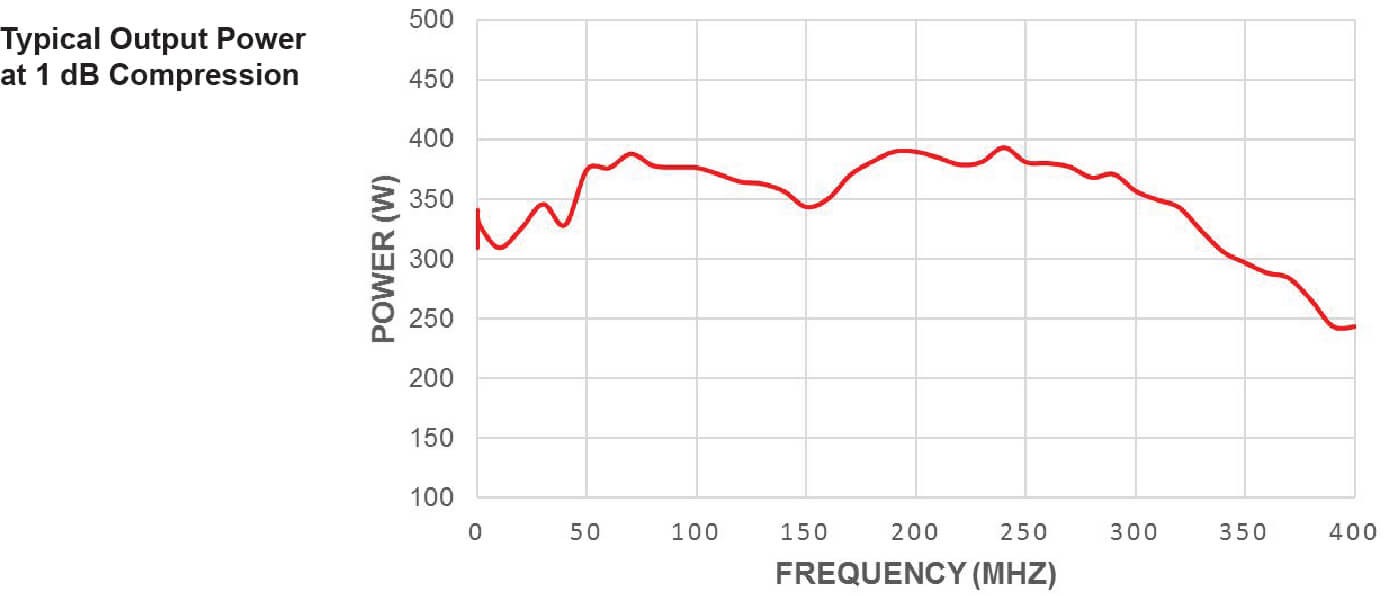

    Charts
    View the RF Power Amplifiers Model 8000-030 charts below
