Key Features

  • ISO 11452-4, Level IV
  • High Reliability
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgren's Model 8100-030 RF Power Amplifier is a 500W/250W power amplifier, designed primarily for EMC applications that include ISO 11452-4 BCI up to Level IV requirements.

    Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8100-030 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifier Model 8100-030 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 5U Case, 630 mm (24.8 in) Deep
    Weight: 54.0 kg (119.1 lb)
    Case Style (Standard): Rack Mount with Real Panel Connector
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Electrical Frequency Range: 9 kHz to 400 MHz
    Nominal Output Power:
    • 9 kHz to 250 MHz, 500W
    • 250 MHz to 400 MHz, 250W
    Gain Variation: 2
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 3 x 400 VAC 10%, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: <4000 VA
    Remote Interface: GPIB, LAN
    RF Connectors: Type N

    Charts

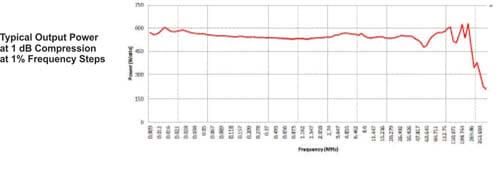

    View the RF Power Amplifier Model 8100-030 charts below
