Key Features

  • IEC 61000-4-3, 30 V/m
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-035 RF Power Amplifier is a 35W power amplifier, designed primarily for EMC applications that include IEC/EN 61000-4-3. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-035 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8000-035 technical specifications below

    Physical Specifications

    Weight: 13.0 kg (28.7 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Frequency Range: 1 MHz to 1 GHz
    Nominal Output Power: 35W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 250 VAC, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: 300 VA

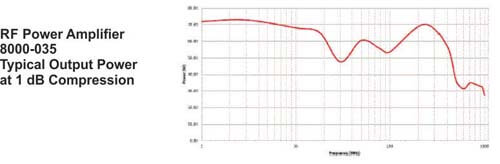

    Charts
    View the RF Power Amplifiers Model 8000-035 charts below
