Key Features

  • ISO 11452-2, 200 V/m
  • High Reliability
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgren's Model 8100-004 RF Power Amplifier is a 2000/1000/700W power amplifier, designed primarily for EMC applications that include ISO 11452-2, 200 V/m requirements. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8100-004 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8100-004 technical specifications below

    Physical Specifications

    Dimensions: 24U Rack, 800 mm (31.5 in) Deep
    Weight: 300.0 kg (660.0 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors

    Electrical Specifications

    Frequency Range: 80 MHz to 1 GHz
    Nominal Output Power:
    • 80 MHz to 280 MHz, 2000W Minimum
    • 280 MHz to 480MHz, 1000W Minimum
    • 480 MHz to 1 GHz, 700W Minimum
    Gain Variation: 2 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 3 x 400 AC
    Supply Frequency Range: 50/60 Hz
    Line Power: <15000 VA

    Charts

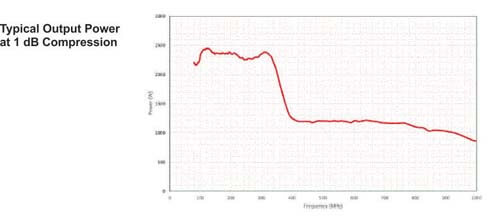

    View the RF Power Amplifiers Model 8100-004 charts below
