Key Features

  • IEC 61000-4-3, 30 V/m
  • High Reliability
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgren's Model 8100-002 RF Power Amplifier is a 1000W power amplifier, designed primarily for EMC applications that include EN/IEC 61000-4-3 30 V/m requirements.

    Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8100-002 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8100-002 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 3U Case, 630 mm (24.8 in) Deep
    Weight: 73.0 kg (160.9 lb)
    Case Style (Standard): Rack Mount with Real Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Electrical Frequency Range: 80 MHz to 1 GHz
    Nominal Output Power: 1000W
    Gain Variation: 2 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 240 VAC 10% Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: <4000 VA
    Remote Interface: GPIB, LAN
    RF Connectors: Type N

    Charts

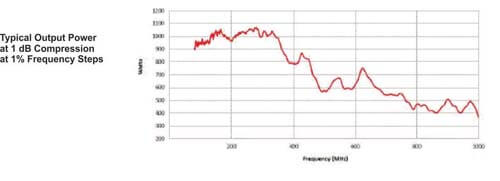

    View the RF Power Amplifiers Model 8100-002 charts below
