Key Features

ETS-Lindgrens Model 8000-043 RF Power Amplifier is a 100 W power amplifier, designed primarily for EMC applications that include IEC/EN 61000-4-3, 10 V/m requirements. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers. The 8000-043 provides very low distortion and tolerance for 100% mismatch.

  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-043RF Power Amplifier is a 100 W power amplifier, designed primarily for EMC applications that include IEC/EN 61000-4-3, 10 V/m requirements. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers. The 8000-043 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifier Model 8000-043 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 6U Case, 550 mm (21.7 in) Deep
    Weight: 35 kg (77 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications


    Frequency Range: 1 GHz to 2 GHz
    Nominal Output Power: 100W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 250 VAC, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: < 1 kVA
    Spurious: <60 dBc
    Remote Interface: GPIB
    RF Connectors: Type N


    Product Configuration


    Frequency Range: 1 GHz to 2 GHz
    Nominal Output Power: 100W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 250 VAC, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: < 1 kVA
    Spurious: <60 dBc
    Remote Interface: GPIB
    RF Connectors: Type N

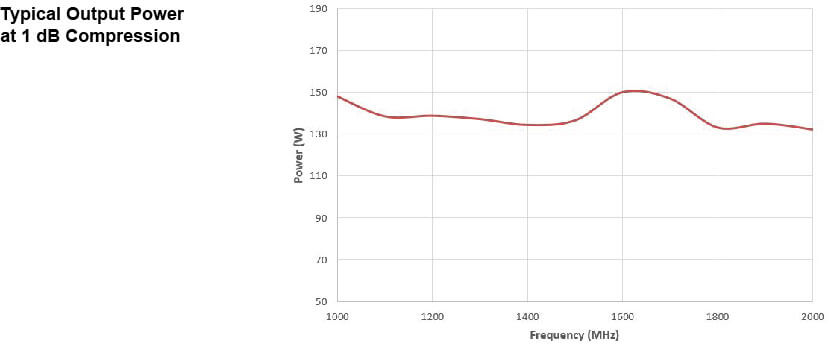

    Charts
    View the RF Power Amplifier Model 8000-043 charts below
