8000-072 RF Power Amplifier
Product Image
Key Features


  • Designed for Automotive Testing
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock


ETS-Lindgrens Model 8000-072 RF Power Amplifier is a 70W power amplifier, designed primarily for general EMC, automotive and military applications. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

The 8000-072 provides very low distortion and tolerance for 100% mismatch.

Reference material: Remote Control Interface User Manual.

Specifications
Physical Specifications

Dimensions 19 in, 4U Case, 600 mm (23.6 in) Deep

Communication Interface USB, GPIB, Ethernet

Connectors Input N (f); Output N (f)

Weight 15 kg (33 lb)

Rack mount with Rear Panel Connectors


Electrical Specifications

Frequency Range: 700 MHz to 4.2GHz
Nominal Output Power: 70 W
Gain Variation: 3 dB
Harmonics: -20 dBc Maximum
Output Impedance: 50
Input VSWR: 2:1 Maximum
AC Supply: 100-240 VAC Single Phase
Supply Frequency Range: 50/60 Hz
Line Power: < 1.5 kVA

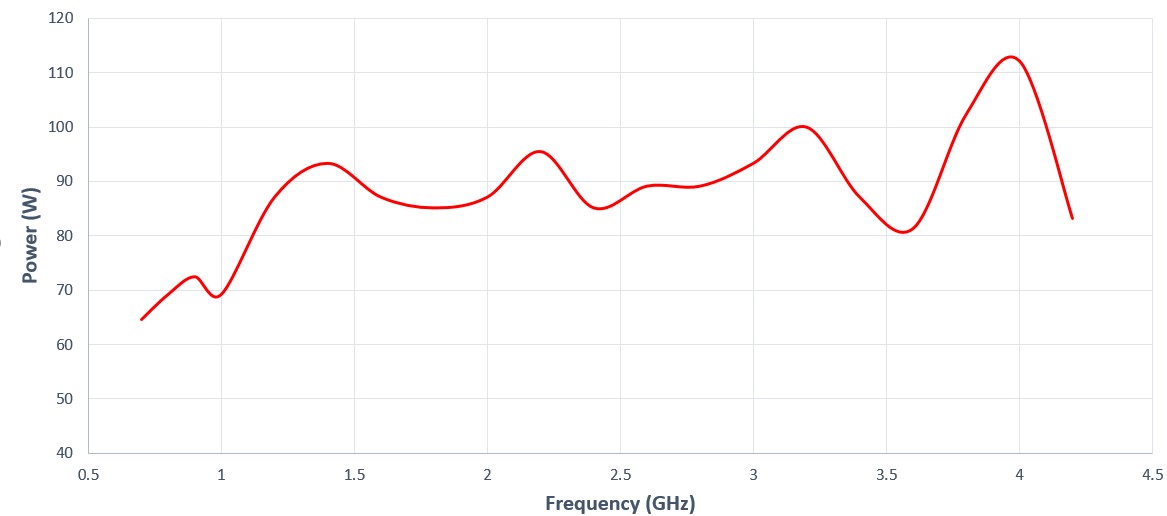

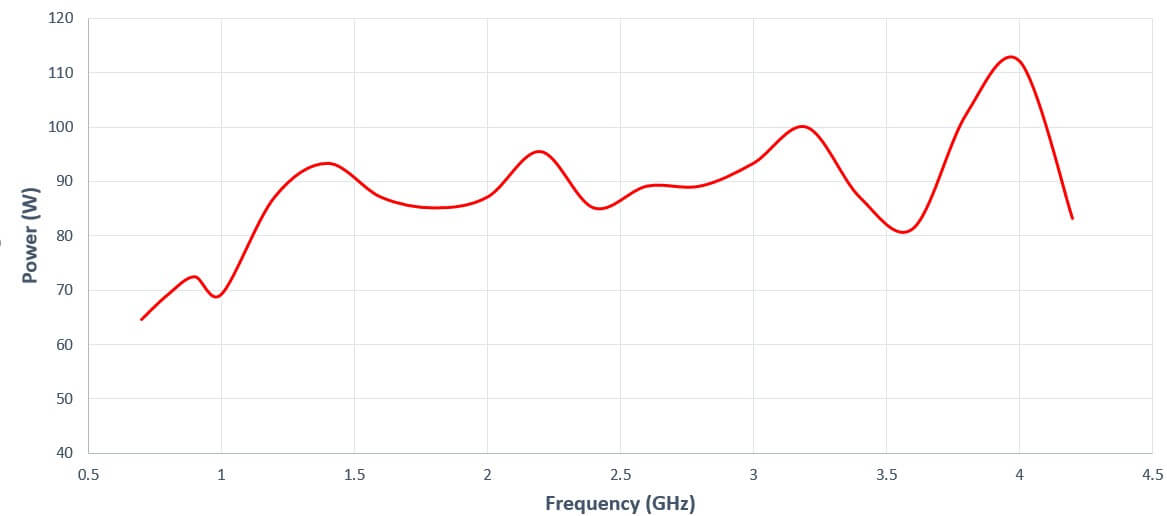

Charts
