Key Features


  • Designed for Automotive Testing
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock


  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-070 RF Power Amplifier is a 18W power amplifier, designed primarily for gerneral EMC, automotive and military applications. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon based amplifiers.

    The 8000-070 provides very low distortion and tolerance for 100% mismatch.


    Specifications
    View the RF Power Amplifier Model 8000-070 technical specifications below

    Physical Specifications

    Dimensions 19 in, 3U Case, 500 mm (20 in) Deep

    Communication Interface USB, GPIB, Ethernet

    Connectors Input N (f); Output N (f)

    Weight 6 kg (13 lb)

    Rack mount with Rear Panel Connectors


    Electrical Specifications

    Frequency Range: 700 MHz to 4.2GHz
    Nominal Output Power: 18 W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100-240 VAC Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: < 150VA

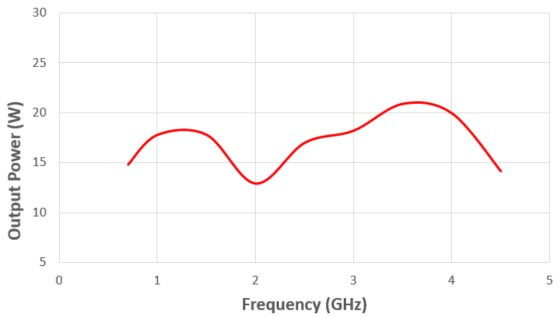

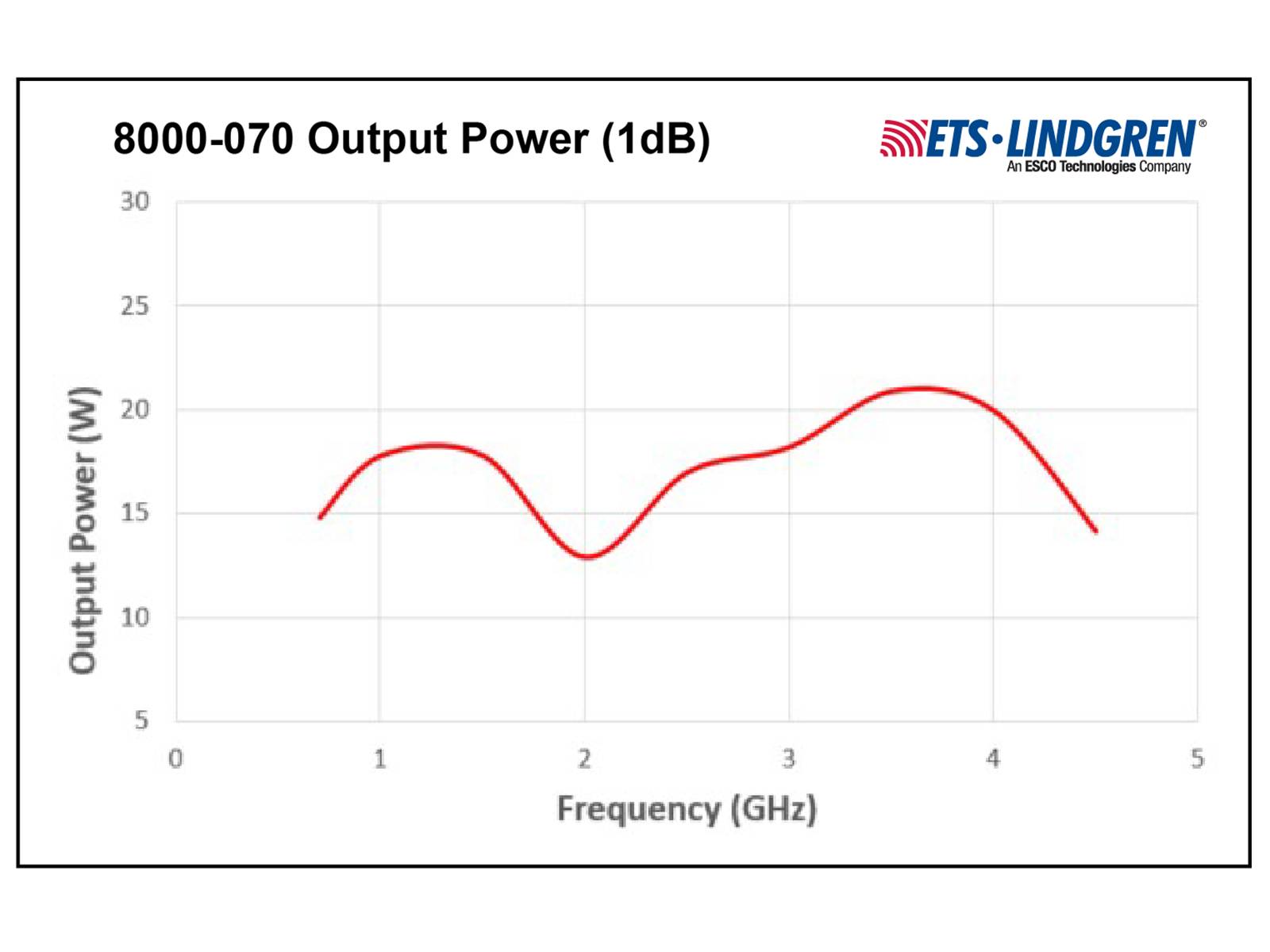

    Charts
    View the RF Power Amplifier Model 8000-070 charts below
