Key Features

  • MIL-STD 461 RS103, 200 V/m
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock


  • Download PDF Datasheet

  • ETS-Lindgrens Model 8000-029 RF Power Amplifier is a 900W power amplifier, designed primarily for EMC applications that include MIL-STD 461 RS103, 200 V/m.

    Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-029 provides very low distortion and tolerance for 100% mismatch


    Specifications
    View the RF Power Amplifier Model 8000-029 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 6U, 550 mm (21.6 in) Deep
    Weight: 33.0 kg (73 lb)
    Case Style (Standard): Rear Panel Connectors


    Electrical Specifications


    Electrical Frequency Range: 10 kHz to 100 MHz
    Nominal Output Power: 900 W
    Gain Variation: 2 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 184-264 Vac
    Supply Frequency Range: 45/63 Hz
    Line Power: 3 kVA

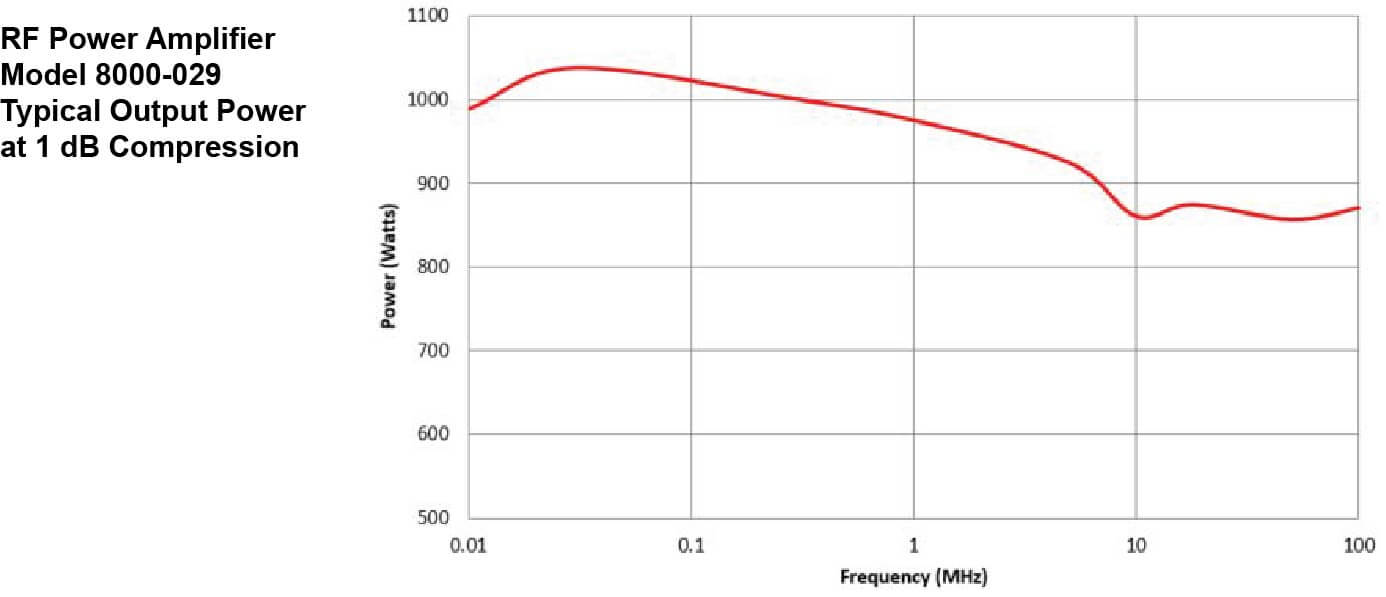

    Charts
    View the RF Power Amplifier Model 8000-029 charts below
