Key Features

  • 700 MHz to 6 GHz, 25W
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgren's Model 8100-041 RF Power Amplifier is a 25W power amplifier, designed primarily for EMC and general RF applications that require at least 25W from 700 MHz to 6 GHz. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8100-041 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8100-041 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 3U Case, 550 mm (27.1 in) Deep
    Weight: 18.0 kg (39.7 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Frequency Range: 700 MHz to 6 GHz
    Nominal Output Power: 25W
    Gain Variation: 3
    Harmonics: -15 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 240 VAC Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: <1000 VAC

    Charts

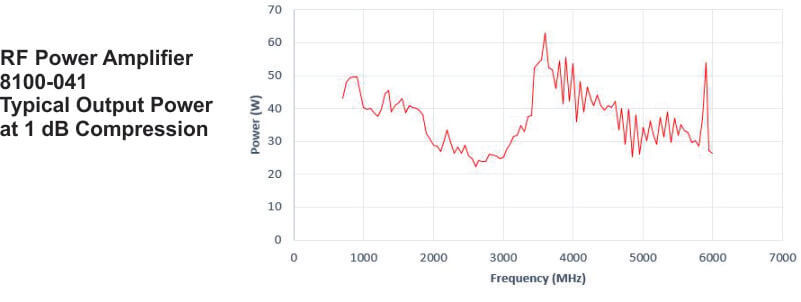

    View the RF Power Amplifiers Model 8100-041 charts below
