Key Features

  • IEC 61000-4-3
  • High Reliability
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgren's Model 8100-007 RF Power Amplifier is a 75W/50W power amplifier, designed primarily for EMC applications that include IEC-61000-4-3, 10 V/m up to 6 GHz requirements.

    Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8100-007 provides very low distortion and tolerance for 100% mismatch.

    View the RF Power Amplifiers Model 8100-007 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 3U Case, 630 mm (24.8 in) Deep
    Weight: 26.0 kg (57.3 lb)
    Case Style (Standard): Rack Mount with Real Panel Connector
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Electrical Frequency Range: 1 GHz to 6 GHz
    Nominal Output Power:
    • 1 GHz to 2.5 GHz, 75W Minimum
    • 2.5 GHz to 6 GHz, 50W Minimum
    Gain Variation: 2
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 250 VAC 10% Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: <600 VA
    Spurious: <65 dBc
    Remote Interface: GPIB, LAN
    RF Connectors Type N

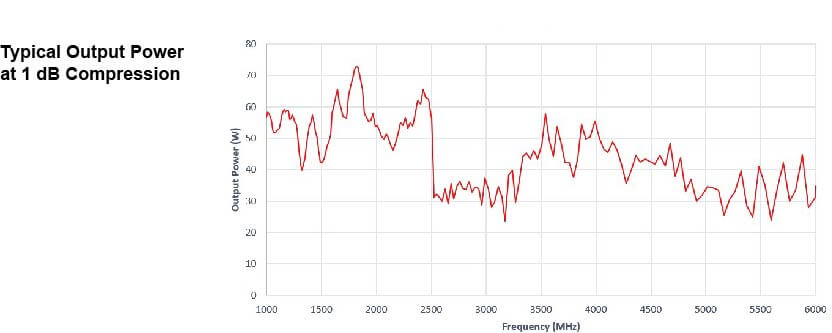

    View the RF Power Amplifiers Model 8100-007 charts below
