Key Features

  • IEC/EN 61000-4-3, 3 V/m (80% AM)
  • High Reliability
  • GaN Design - Class A
  • Excellent Performance
  • Efficiency Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-061 RF Power Amplifier is a 40 W power amplifier, designed primarily for EMC applications that include IEC/EN 61000-4-3, 3 V/m requirements. Utilizing GaN technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers. The 8000-061 provides very low distortion and tolerance for 100% mismatch.

    View the RF Power Amplifier Model 8000-061 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 3U Case, 500 mm (19.6 in) Deep
    Weight: 12.0 kg (26.5 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connector

    Electrical Specifications

    Frequency Range: 1 GHz to 6 GHz
    Nominal Output Power: 40 W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 240 VAC, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: < 450 VA
    Remote Interface: GPIB, LAN, USB
    RF Connectors: Type N(f)
    Sample Ports: Type N(f)

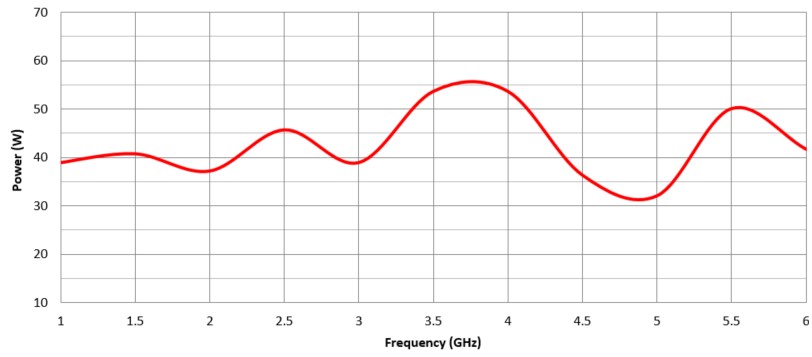

    View the RF Power Amplifier Model 8000-061 charts below
